POWER

1.47 -2.01 | 1 ~ HP

SURFACE

5270 in2

CAPACITY

5 gal

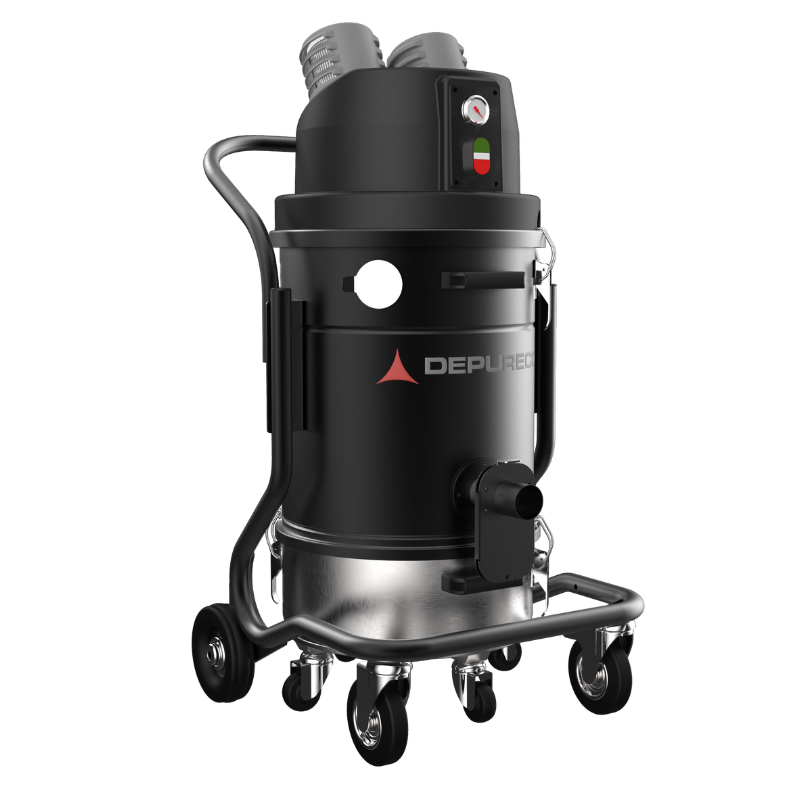

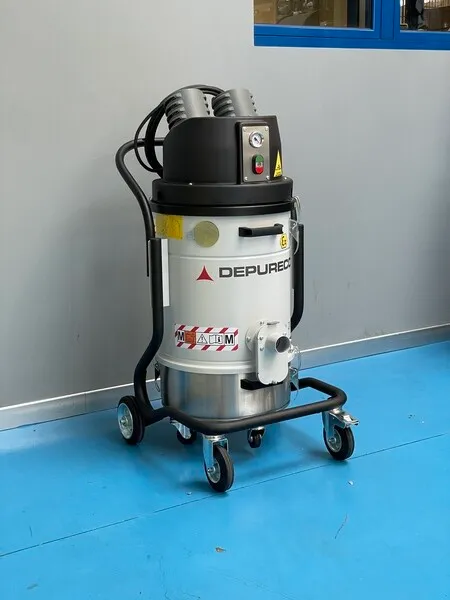

The BL 20 JC Z22 industrial vacuum cleaner stands out as one of the most compact models within the Depureco lineup. It operates through a high-performance Brushless motor, delivering both powerful suction and quiet operation. The BL 20 JC Z22 industrial vacuum cleaner is equipped with a generously sized surface filter, measuring 5,4 in2, certified in class M for superior filtration efficiency of particles as small as 1 micron. Upon request, an optional absolute filter H14 can be installed to enable the vacuuming of even the finest dust particles. Additionally, this vacuum cleaner features a semi-automatic JetClean® filter cleaning system that allows for filter maintenance without interrupting the suction process. The collected material is stored in a 5.3 gal AISI 304 stainless steel container equipped with wheels for easy mobility.

BL 20 JC ATEX | HIGHLIGHTS
brushless

Suction Unit

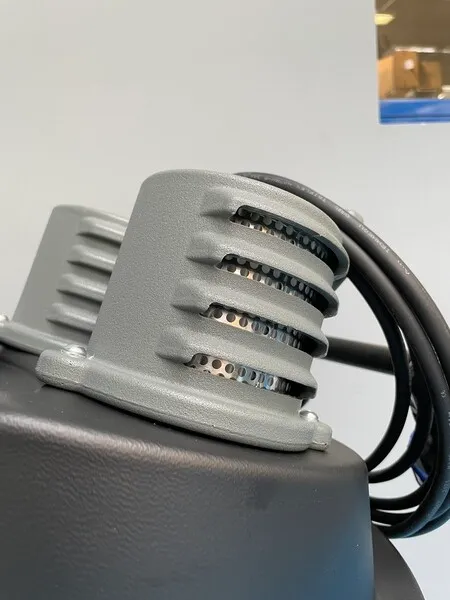

The suction mechanism of this vacuum cleaner utilizes a high-powered brushless motor, designed to operate continuously. The motor head incorporates two filters: one that safeguards the motor itself and another placed on the air outlet. Notably, the expelled air is completely free of carbon emissions.

Filtering element

Filtration is effectively provided by a robust polyester filtering cartridge. The cartridge is specifically designed to offer a substantial filter surface area of approximately 5,280 in2 within a compact form factor. This design allows for uninterrupted airflow, even when the filter becomes dirty. The filter is certified as M Class (BIA | EN 60335-2-69), ensuring efficient capture of particles down to 1 micron in size, thereby safeguarding both the motors and the operator.

inox_20_lt_small

COLLECTION BIN

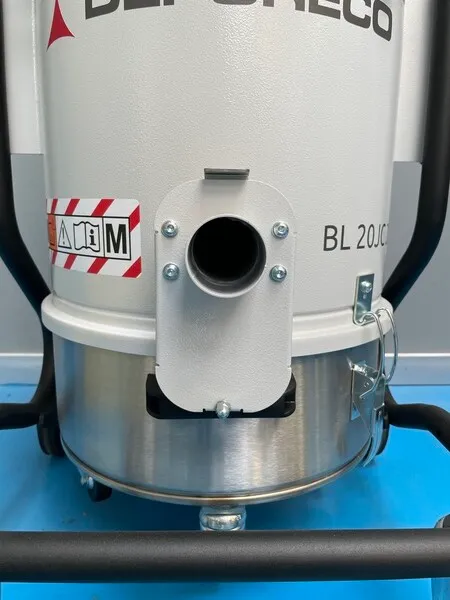

To prevent any potential sparks resulting from electrostatic charge, the collected material is stored in a container crafted from AISI 304 stainless steel. This choice of material ensures a spark-free environment during the storage process. Additionally, facilitated by four robust pivoting wheels, the container can be effortlessly maneuvered, enabling easy disposal of the accumulated material.

jet clean

jet clean filtering cleaning system

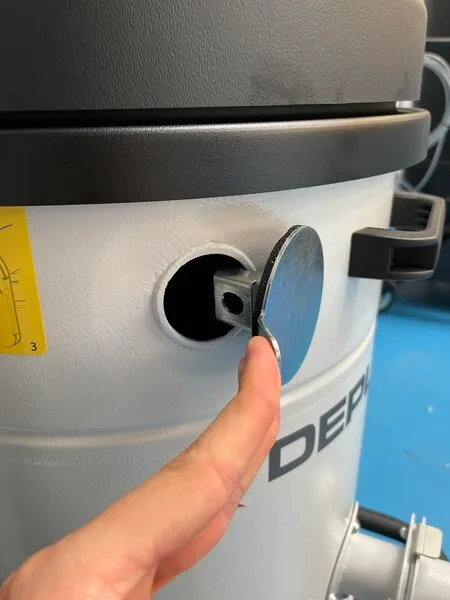

The vacuum cleaner features a state-of-the-art filter cleaning system called JetClean®, developed by Depureco. This innovative system harnesses the pressure differential between the interior and exterior of the vacuum cleaner to generate a powerful air jet. As the air jet passes through the cartridge, it effectively dislodges dust particles from the surface of the filter. This process ensures a rapid and efficient cleaning of the filter during operation, eliminating the need to interrupt the vacuuming process.

BL 20 JC ATEX | TECHNICAL DATA

Motor

Brushless motor
110/230 | 50/60
V|Hz
92
inH2O
129
CFM
72
dB(A)
1.47 - 2.01 | 1 ~
HP
1.96
Ø in

Primary Filter

Cartridge
M class
Antistatic polyester
Jet Clean®
5270
in²

Machine

20.32x21.46
in
41.33
in
83.78
lb
5
gal
BL 20 JC ATEX | OPTIONS

Jet Clean

HEPA

H14 Absolute Filter (EN 1822) Glass fiber

BX

BL 20 JC ATEX | ACCESSORY

P13642 – Ex Anti-Static kit PRO Ø1.57in

P13641 – EX Anti-static Starter kit Ø1.57in
