3.3 HP | 120 V
264 gal

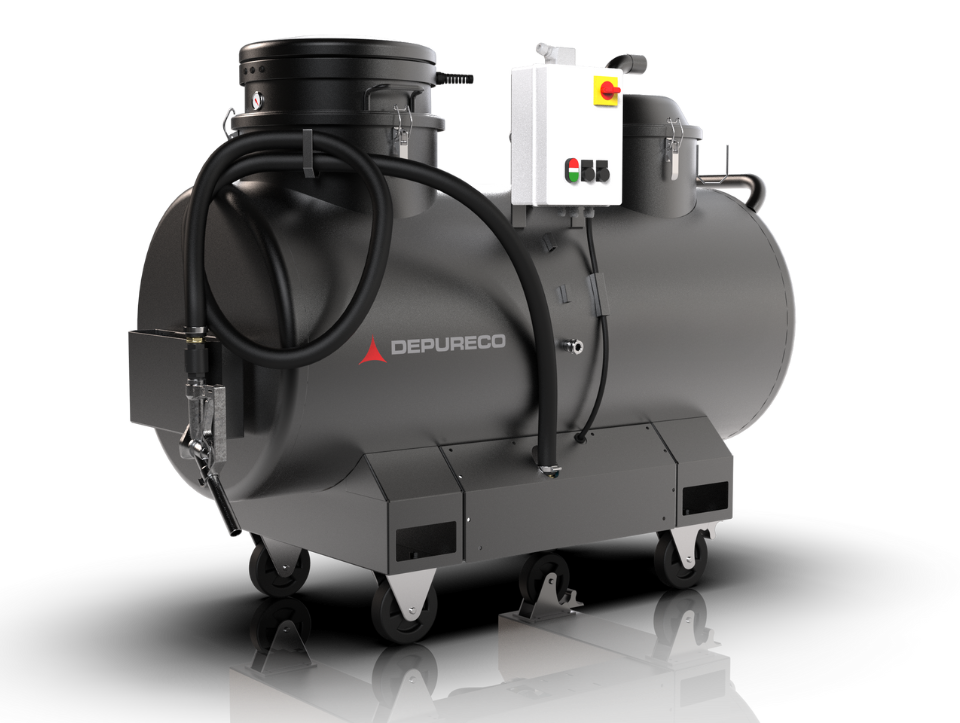

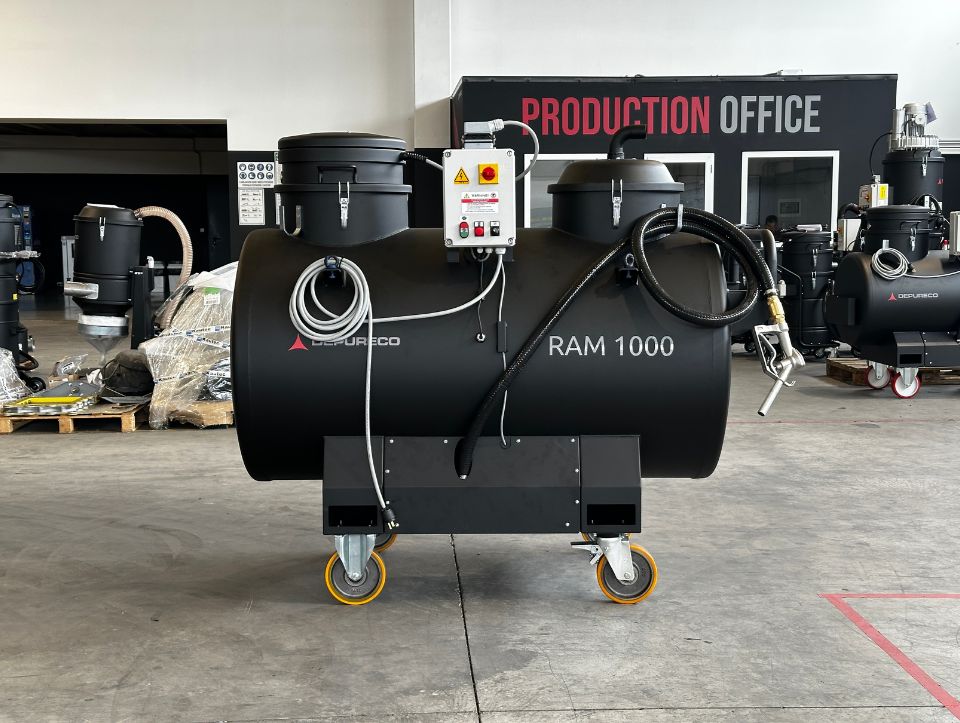

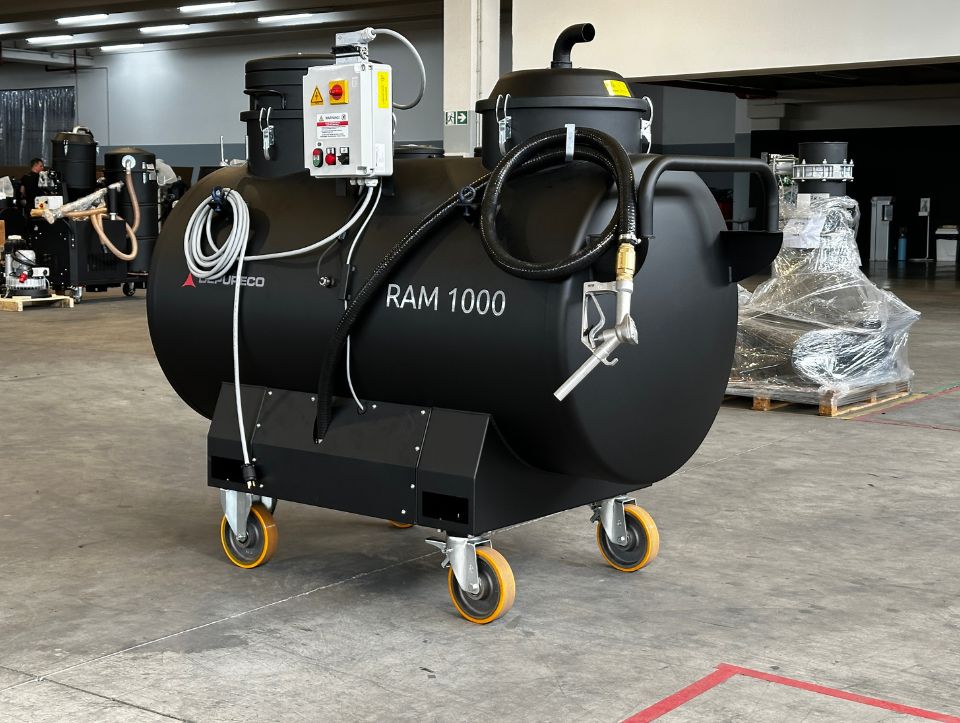

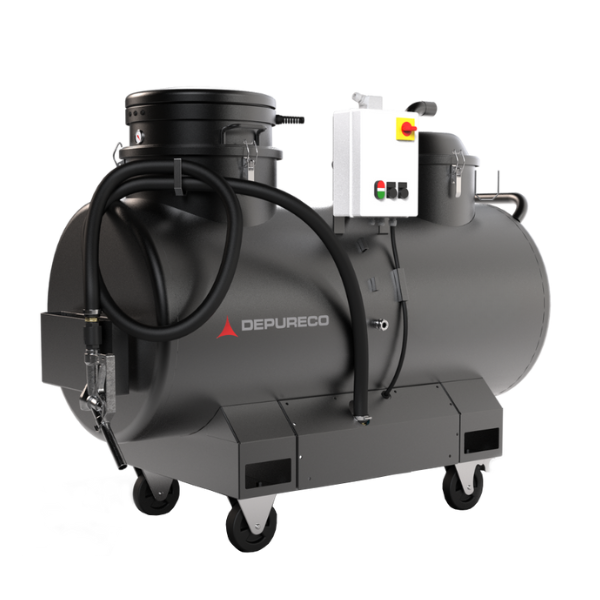

The RAM OIL 1000 MP industrial vacuum is the perfect solution for fast, efficient cleaning of CNC machine sumps. It comes standard with an oil and chip accessory kit, a convenient tool basket, and two practical hose holders for easy operation.
Filters and recycles cutting and lubricating oils
Simplifies liquid collection and chip separation
Vacuums and discharges filtered liquid at the same time
Heavy-duty painted steel construction built for industrial use
The vacuum is powered by three independent by-pass motors, managed through a single control switch that starts them in sequence to prevent power surges. The motors are housed in a durable metal casing, lined with sound-insulating material to keep noise levels to a minimum.
The gathered liquid passes through a PPL filter with a 150µ efficiency, which enables the separation of even the tiniest solid particles. This process ensures that the filtered liquid becomes suitable for reuse. The filter is designed to be easily washed and reused. Additionally, there is an alternative disposable TNT filter with a 100µ efficiency that is also available.
The material being vacuumed is directed into the machine through a flanged intake nozzle positioned above the lid of the metal mesh basket. Once inside, the material undergoes filtration within the basket itself. The basket, which features a PPL filter, functions as a sieve, effectively separating any solid particles. Finally, the filtered liquid is collected within the spacious tank, making it readily available for reuse.
To discharge the tank, the vacuum features an externally mounted pump, maximizing the container's full capacity and guaranteeing thorough emptying without any residue.
