POWER

up to 3.3 HP

CAPACITY

up to 132 gal

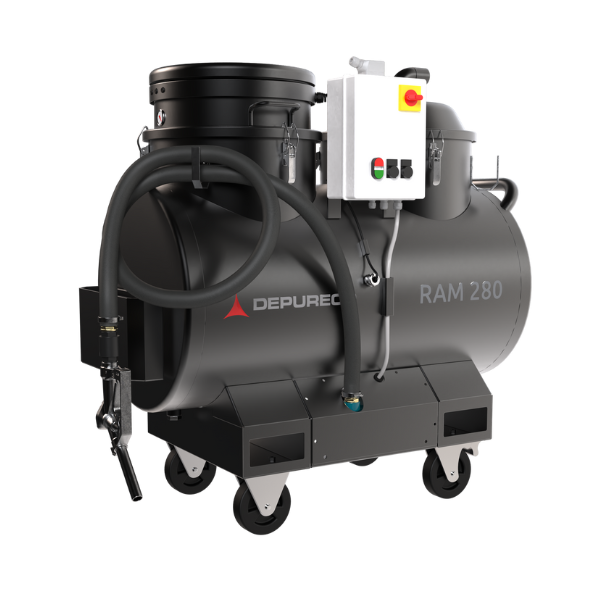

The RAM OIL  MP industrial vacuum cleaner, featuring a capacious of 74 or 132 liquid gallons tank, is widely utilized for cleaning CNC machine tanks. It excels in both cleaning speed and replenishing oil lubricants-coolants within the tanks, efficiently vacuuming metal shavings and swarf. As part of Depureco’s oil and swarf range, the RAM OIL MP utilizes the “reverse flow” system for liquid drainage. This innovative system eliminates the need for additional maintenance and minimizes the risk of pump clogging during liquid transfer.

Professional-grade suction power is generated by a high-performance side-channel blower, ensuring exceptional vacuum speed and efficient liquid replenishment. The vacuum cleaner’s tank features a convenient quick-release metal basket for efficient separation of solid and liquid components. With a 150-micron filter, it achieves more effective filtration of swarf.

To prevent overflow, an electrical level indicator within the container automatically stops the airflow once the maximum capacity is reached. The vacuum cleaner comes equipped with the perfect oil accessories kit as a standard feature, specifically designed for vacuuming CNC machines. Additionally, upon request, a drainage pump can be provided and installed for continuous discharge of liquids.

The RAM OIL MP industrial vacuum cleaner is a reliable and versatile solution for efficiently cleaning CNC machine tanks, with features designed to enhance performance and ease of use.

RAM OIL 280 M PUMP has a pivoting suction inlet; RAM OIL 500 M PUMP has a pivoting suction inlet and BIS.

RAM OIL M PUMP | HIGHLIGHTS
single phase

Suction Unit

The suction power is derived from three by-pass motors within the vacuum system. Each motor is individually controlled by its own switch, granting the operator precise control over the intake performance. Housed within a robust casing, the motors are accompanied by an insulating sponge to effectively reduce noise levels, creating a quieter working environment.

Filtering element

The gathered liquid passes through a PPL filter with a 150µ efficiency, which enables the separation of even the tiniest solid particles. This process ensures that the filtered liquid becomes suitable for reuse. The filter is designed to be easily washed and reused. Additionally, there is an alternative disposable TNT filter with a 100µ efficiency that is also available.

Inlet

Inlet

The material being vacuumed enters the machine through a flanged intake nozzle positioned on top of the lid that covers the filtering grid. Within this compartment, the material is effectively separated from any solid particles that may be present. The filtered liquid is then collected within the spacious tank, making it readily available for reuse.

discharge system

Discharge system

The vacuum cleaner is outfitted with a submerged pump for efficient tank emptying. The pump is equipped with a level sensor that automatically halts the intake process when the tank reaches its maximum capacity. Similarly, the level sensor instructs the machine to interrupt discharge operations when the minimum level is reached. This intelligent system ensures seamless operation and prevents overfilling or insufficient liquid levels in the tank.

RAM OIL M PUMP | TECHNICAL DATA

RAM OIL 280 M PUMP

Motor
3 | By-Pass
110 | 60
V|Hz
98
inH2O
336
CFM
72
dB(A)
3.3 | 1∼
HP
1.96
Ø in
Primary Filter
PPL+oil proof cartridge included
150
IFA
Machine
27.56 X 57.09
in
55.12
in
485
lb
74
gal
11
gal
73.97/63
gal/sec
73.97/60
gal/sec
Immersionpump
1
HP
110/60
V | Hz

RAM OIL 500 M PUMP


3 | By-Pass
110 | 60
V|Hz
98
inH2O
336
CFM
72
dB(A)
3.3 | 1∼
HP
1.96
Ø in

PPL+oil proof cartridge included
150
IFA

23.62 X 59.45
in
55.12
in
485
lb
132
gal
11
gal
73.97/63
gal/sec
73.97/60
gal/sec
Immersion pump
1
HP
110/60
V | Hz
RAM OIL M PUMP | OPTIONS

BX

RAM OIL M PUMP | ACCESSORY

P12355 – Oil and Swarf kit PRO Ø1.96in
