Remove dry metal chips, shavings, and swarf directly at the CNC machine with a fixed HF 300 vacuum system built for repeatable part cleaning, continuous-duty suction, and automatic chip discharge.
This system is designed for dry machining applications where chips collect on finished parts, fixtures, machine beds, pockets, conveyors, or localized collection points. Instead of blowing chips around the machine or manually brushing parts between cycles, the HF 300 pulls chips away from the work area and discharges them into the CNC collection system when suction stops.
Industrial vacuum systems for metal chips are used in CNC machining environments to remove dry metal chips, swarf, and machining debris from parts and work areas. These systems are designed for continuous duty operation and can be integrated directly with CNC machines for efficient chip removal and material discharge. Common applications include metal chip vacuum systems, CNC chip vacuums, and industrial vacuum cleaners for metal shavings and dry chip recovery.
This URL is the dedicated HF 300 dry metal chip vacuum system page for fixed CNC machine-side dry chip removal. The primary focus keyword is dry metal chip vacuum system. Related terms include stationary metal chip vacuum, CNC chip vacuum system, industrial vacuum for dry metal chips, machine-side chip vacuum, dry swarf recovery vacuum, dry metal shavings vacuum, fixed industrial vacuum for metal chips, and automatic chip discharge vacuum system.
Stationary vacuum setup for CNC machining cells, production equipment, and localized chip removal points.
Built for cleaning steps that happen again and again between machining, inspection, washing, assembly, or packaging.
Collected chips drop into the CNC collection system when suction stops, reducing manual handling.
In CNC machining cells, dry chips often build up in the same locations after each cycle. Finished parts, gearbox housings, fixtures, pockets, and machine beds can all hold chips that need to be removed before the next production step.
The HF 300 is designed for those repeated cleaning points. It gives operators a fixed suction source near the machine, pulls chips away from the work area, and helps keep the chip removal process consistent from part to part.
Place suction where dry chips collect instead of moving a portable vacuum between machines or relying on manual cleanup.
Recover dry chips, shavings, and swarf from machined parts, fixtures, and localized collection points.
Support a repeatable cleaning step that fits into the production flow instead of slowing it down.
This page should be understood as a fixed-installation dry chip removal solution, not the broad metal chip vacuum category page. The content is focused on dry chips, shavings, and swarf that collect on CNC-machined parts, machine beds, fixtures, pockets, conveyors, and localized collection points. Users seeking broader portable machine shop chip cleanup should be routed to the metal chip vacuum solution page. Users seeking coolant tank cleanout, oil recovery, sludge removal, tramp oil recovery, wet chips, or pump-back coolant systems should be routed to the sump vacuum solution page. Users seeking multiple pickup points, engineered pipe networks, or facility-wide suction should be routed to central vacuum system design.

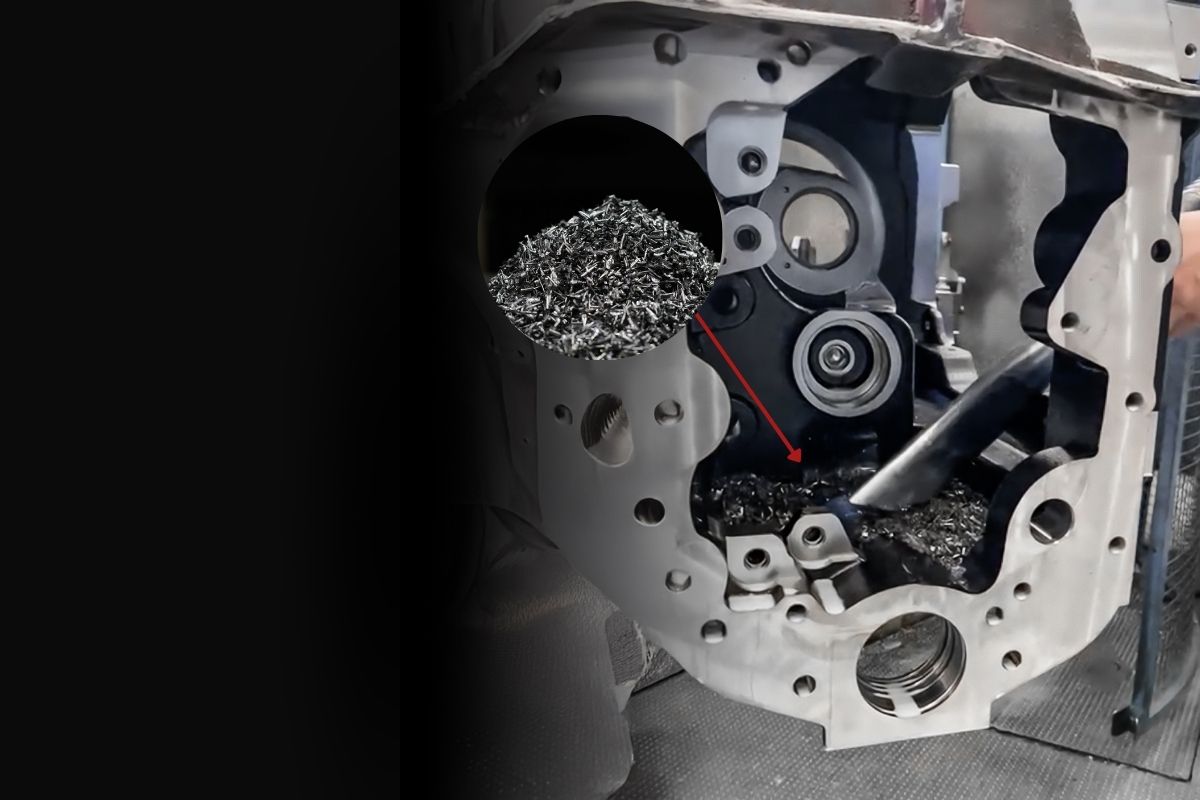

Dry metal chips can remain on finished components after machining. They may sit on machined surfaces, collect inside pockets, settle in fixtures, or fall into areas that are difficult to clear by hand.
For high-value parts like gearbox blocks, housings, castings, and transmission components, leftover chips can create quality issues, extra handling, and slower cycle times. A fixed dry-chip vacuum system helps remove those chips before the part moves to the next stage.
Operators can clean the same part areas more consistently without brushing, sweeping, or repeated blow-off.
The HF 300 is installed as a fixed suction source near the CNC machine or collection point. Operators use the connected pickup tool, hose, or machine-side connection to remove chips from the part or work area.
The system pulls dry chips into the vacuum body, separates material through the filtration system, and releases collected chips through the discharge flap when suction stops.
The HF 300 dry chip system works by capturing dry chips from a CNC part, fixture, work area, or collection point, pulling material into the vacuum body, separating particles through the filtration system, and releasing collected chips through a gravity discharge flap when suction stops. This supports repeatable dry chip removal, reduced manual chip handling, and direct discharge into a hopper, bin, conveyor, CNC collection system, or approved collection point.
The HF 300 dry chip system can be configured with a gravity discharge flap that releases collected material directly into the CNC collection system, hopper, bin, conveyor, or approved discharge point.
During suction, chips are held inside the vacuum body. When suction stops, the flap opens and the chips drop out automatically. This keeps chip handling connected to the production process and reduces the need for operators to manually empty collected material.
The HF 300 is a three-phase stationary industrial vacuum designed for dry metal chip collection, swarf recovery, and solid material removal in fixed installations.

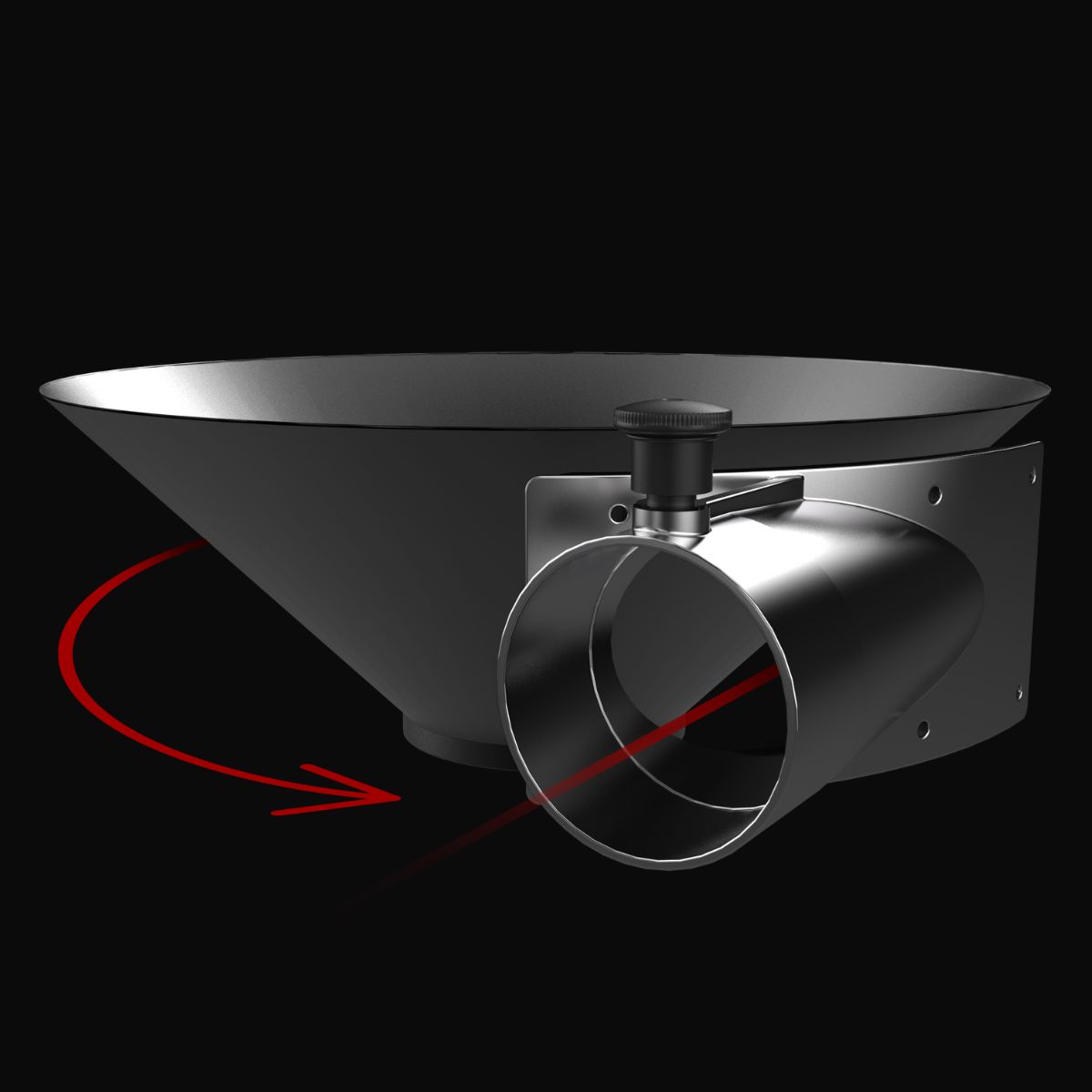

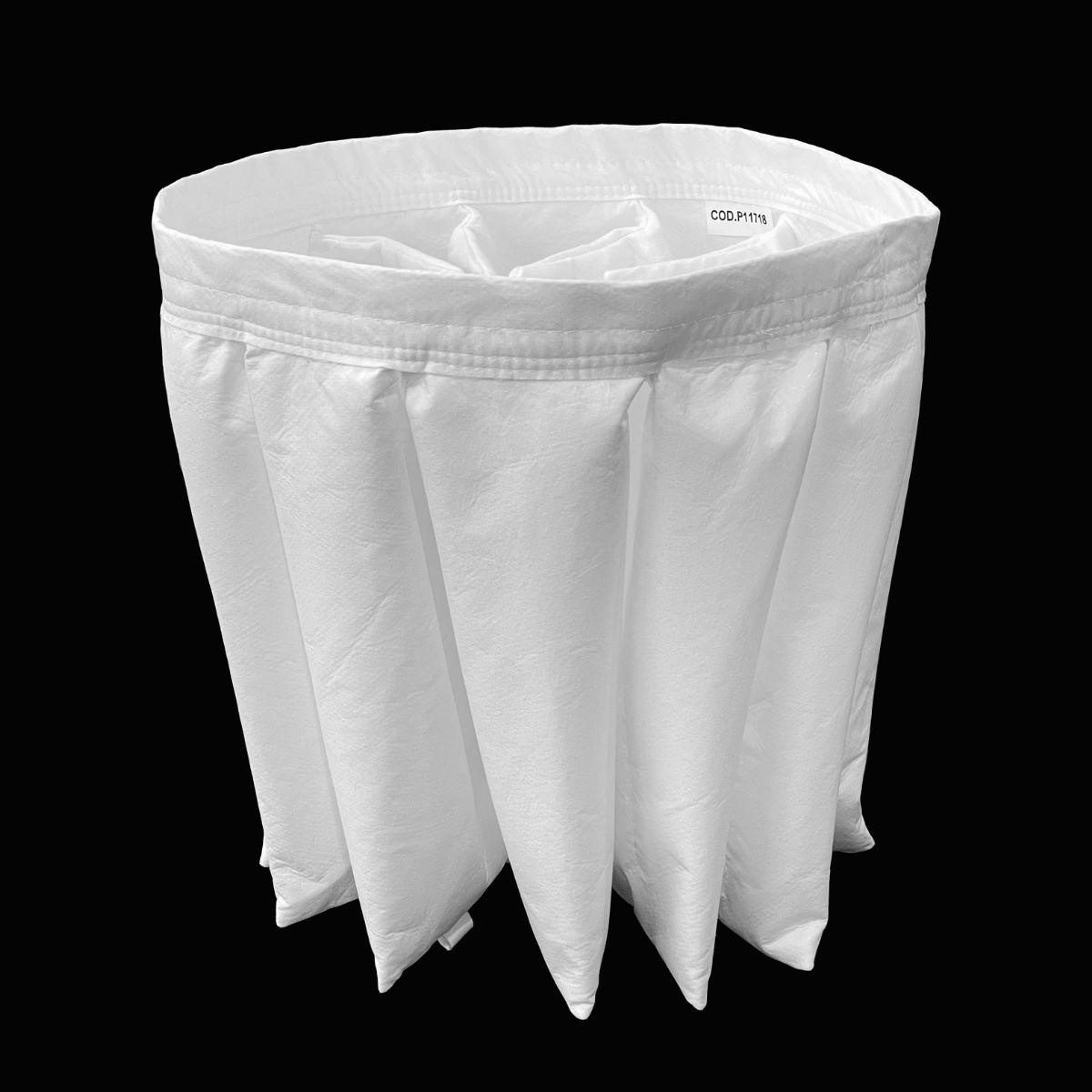

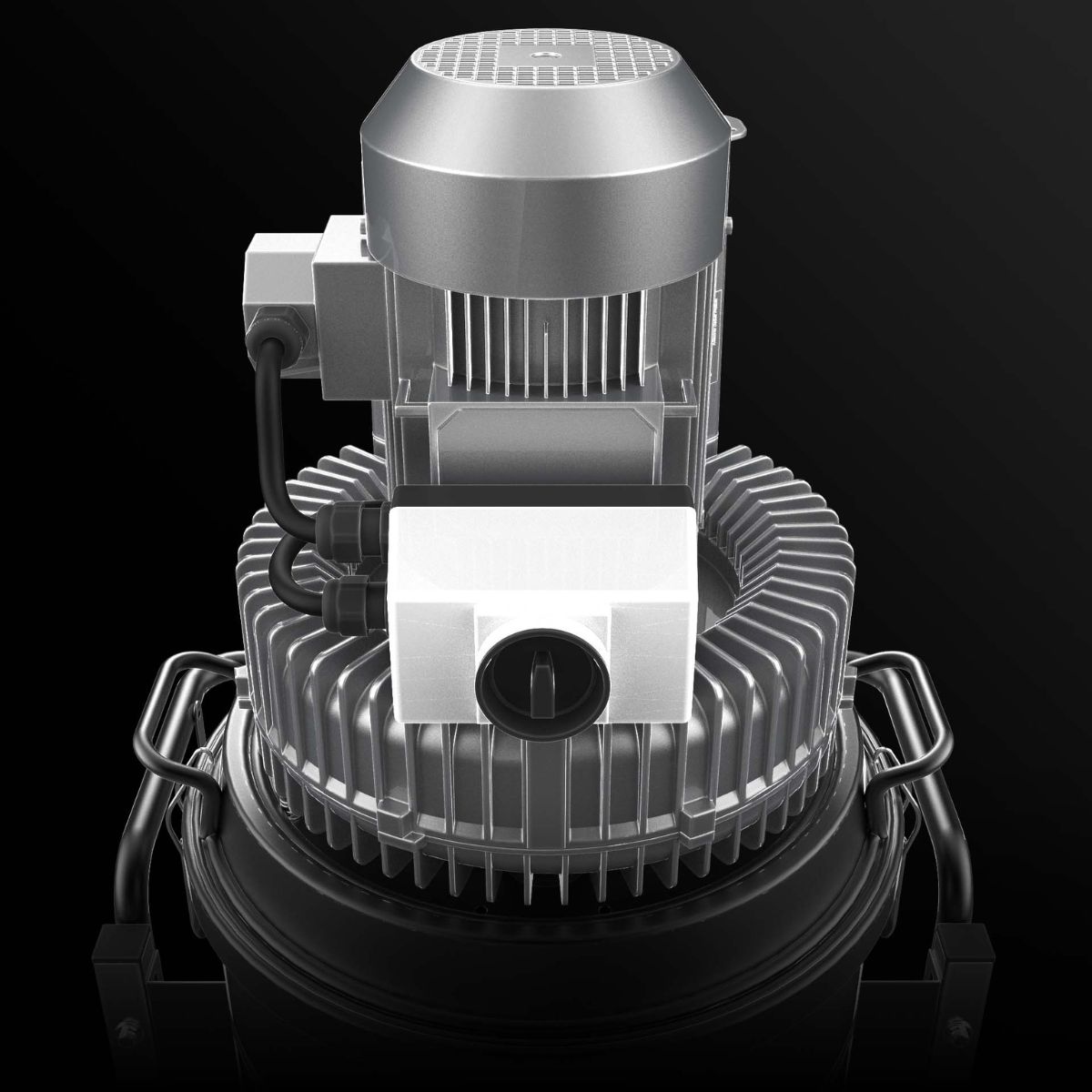

Its side-channel blower provides stable suction for machine-side pickup points and longer connections. The M-Class star filter supports fine particle separation during dry chip recovery, while the manual filter cleaning system helps maintain airflow during operation.
The HF 300 is a stationary three-phase industrial vacuum used for dry metal chip collection, swarf recovery, and solid material removal in fixed installations. Relevant attributes include 4.8 horsepower, side-channel blower suction, tangential inlet, M-Class star filter, manual filter cleaning, large filter surface area, fixed machine-side setup, and optional gravity discharge for collected dry chips.
Relevant materials and applications for this dry metal chip vacuum system include dry steel chips, cast iron chips, aluminum shavings, brass swarf, copper chips, stainless steel swarf, mixed-metal shavings, CNC machining debris, gearbox component cleanup, machined casting cleanup, fixture cleaning, machine bed cleanup, dry chip collection points, and repeated part-cleaning stations.
The vacuum unit is only one part of the system. For dry metal chip recovery, the full setup depends on the chip type, pickup location, hose size, hose length, tool style, discharge point, cleaning cycle, and how the operator interacts with the machine.
Depureco USA can help review your machining process and recommend the right configuration around the HF 300 or another Depureco system. The goal is to match the vacuum, hose, tool, filter setup, discharge method, and workflow to the way chips are actually created and removed in your facility.
If you are not sure which vacuum, hose size, tool, or accessory setup will work best, Depureco Labs can test your material before you commit to a system.
Send us a sample of your chips, swarf, dust, sludge, powder, abrasive media, or mixed material. Our team can test different vacuum units, hose sizes, pickup tools, filters, separators, and collection methods to see what performs best under realistic pickup conditions.
To clean dry metal chips from gearbox components after machining, four HF 300 stationary industrial vacuum systems were installed, one per CNC machine.
These three-phase industrial vacuums are designed for continuous-duty operation and fast surface cleaning. Each unit removes metal chips from the full component in under two minutes, supporting high production throughput.
The system handles fine metal chips and swarf without clogging or loss of suction, making it suitable for demanding machining environments.
Questions answered on this page include what a dry metal chip vacuum system is, when to use the HF 300 for fixed CNC dry chip removal, whether the HF 300 is used for coolant sump cleaning, what dry metal materials can be collected, how the automatic discharge flap works, when to use a portable chip vacuum, and when to use a central vacuum system instead.
A central vacuum system is usually the better fit when multiple CNC machines, pickup points, operators, or production areas need connected suction through a larger pipe network.
