HEPA
H14 Absolute Filter (EN 1822) Glass fiber
37-45 HP | 480V 3-phase
882-1,001 CFM
197 inH2O

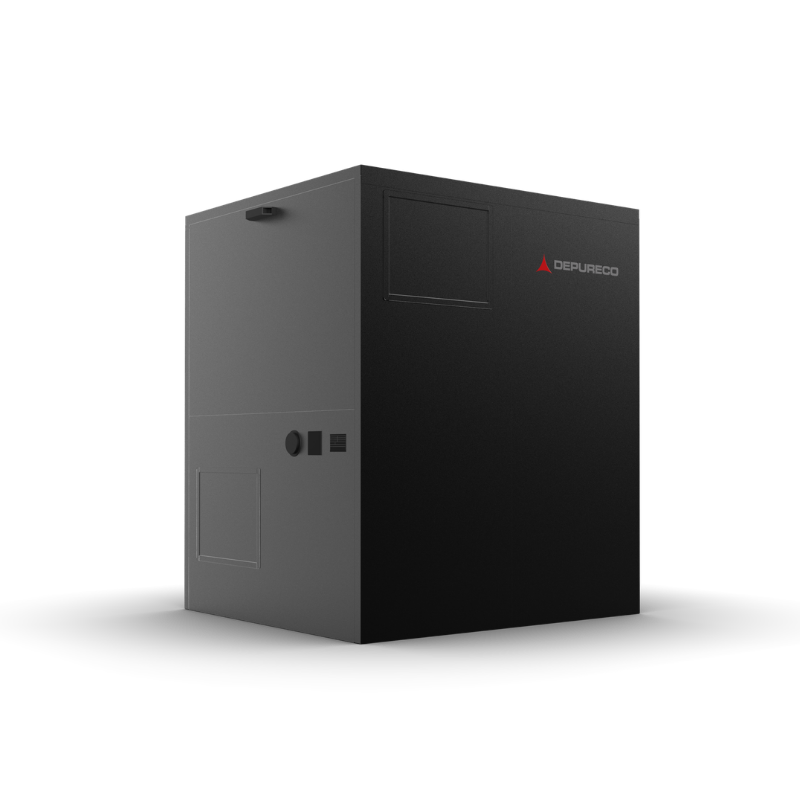

CVS ROOTS is a high vacuum suction unit for centralized suction systems characterized by extreme power and reliability. Equipped with a powerful lobe pump with three-lobe rotors, available in different motorizations, it has been designed to meet all suction requirements with large quantities of material in heavy industries. It is supplied with an electrical panel, soundproof cabin, inlet silencer, vacuum limiting valve, non-return valve, belt and pulley transmission, and base with belt tensioners and anti-vibration mounts.
CVS ROOTS is combined with a filtration and collection unit to feed centralized systems with numerous suction points, even at different heights or levels.
Customized design to adapt to any system requirement.
The suction unit is a side channel blower with direct coupling between motor and impeller. The side channel blower is equipped with a safety valve to guarantee a totally safe continuous work, without any maintenance.
Two pass-through guides located on the bottom facilitate handling of the unit by forklift truck.
Management via electrical panel equipped with star/delta start and remote control. Implementable with additional function.
This unit does not include filtration and collection units, it requires coupling with a filter pre-separator or similar unit.
H14 Absolute Filter (EN 1822) Glass fiber
