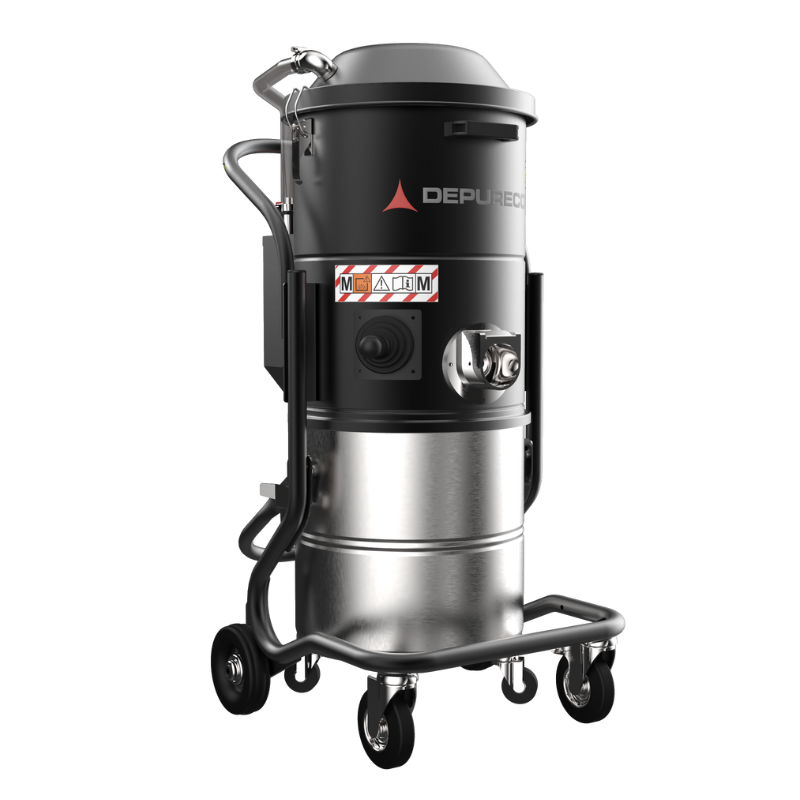

MINIAIR Z2-22
INTRINSICALLY SAFE VACUUM

SURFACE

2.325 in2

CAPACITY

11 gal

The MINI AIR Z2-Z22 is an intrinsically safe compressed air vacuum cleaner that offers exceptional power and versatility for a wide range of industrial applications. It features two parallel working ejectors that deliver maximum performance. Each ejector is adjustable, allowing for customized airflow or vacuum strength depending on the specific task at hand. Inside the vacuum cleaner, you’ll find a large surface filter made of antistatic polyester, certified as M class with a filtration efficiency of 1 micron. This filter ensures the safe collection of electrostatically charged dust. Additionally, an optional H14 filter is available for capturing the finest particles. The vacuum cleaner comes equipped with an effective manual filter cleaning system. By simply using the lever located outside the filtering chamber, the operator can shake the filter, causing the dust to be deposited directly into the collection container. For convenient disposal, a spacious 11 gal release container with wheels is provided, making it easy to empty the vacuumed material.

HIGHLIGHTS

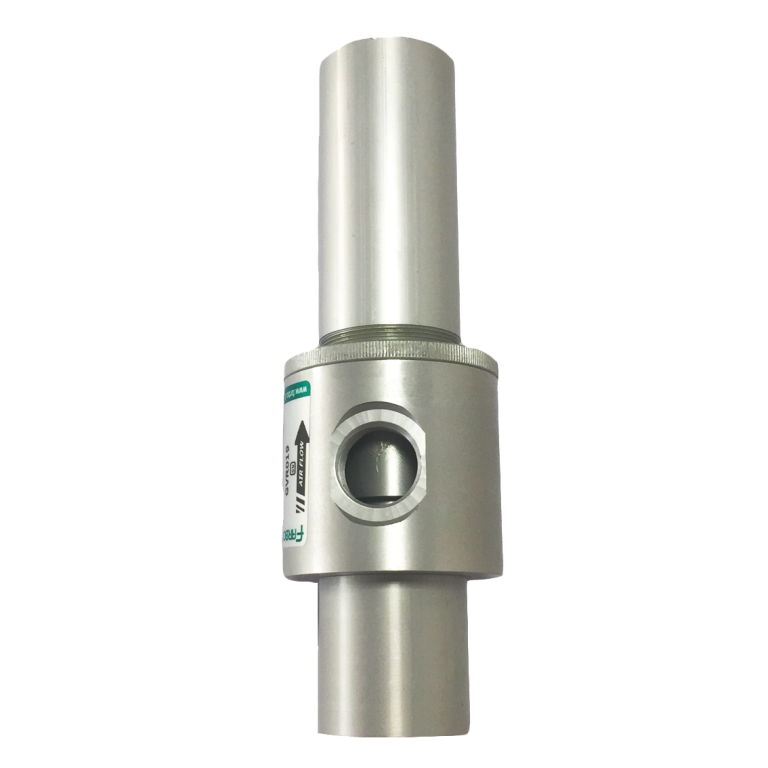

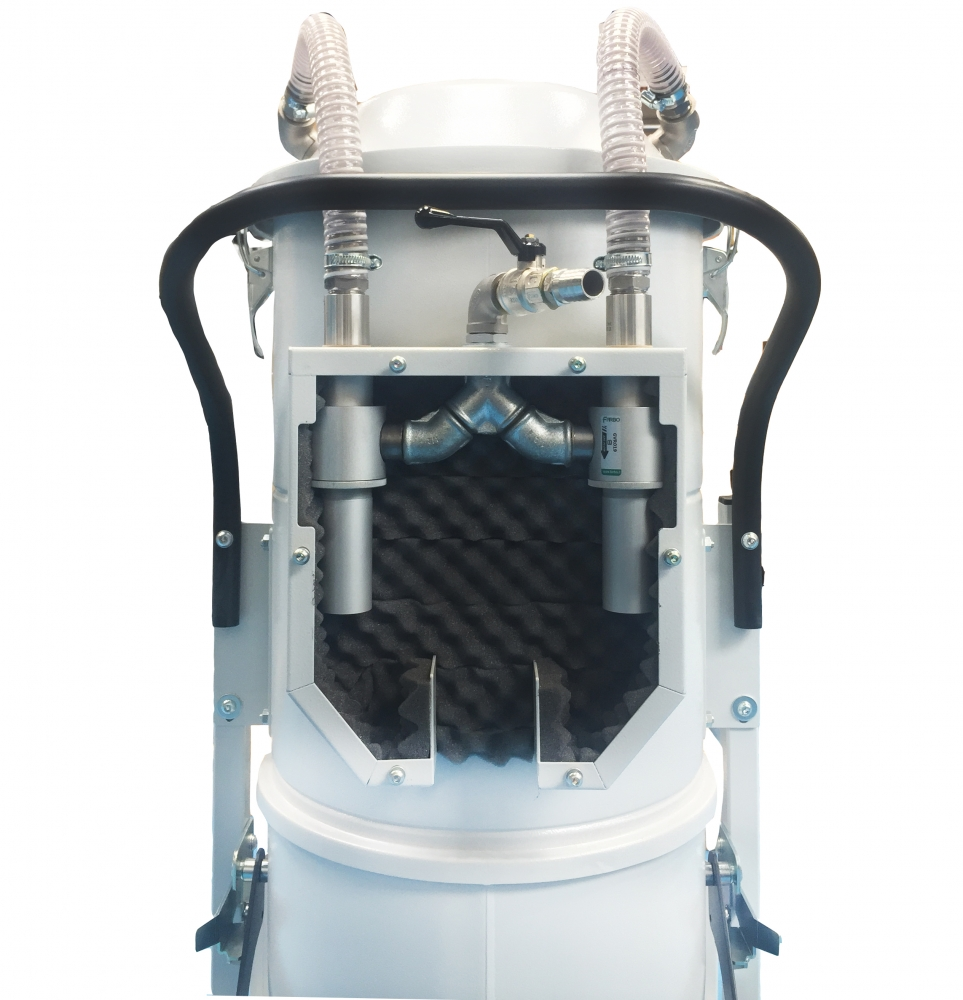

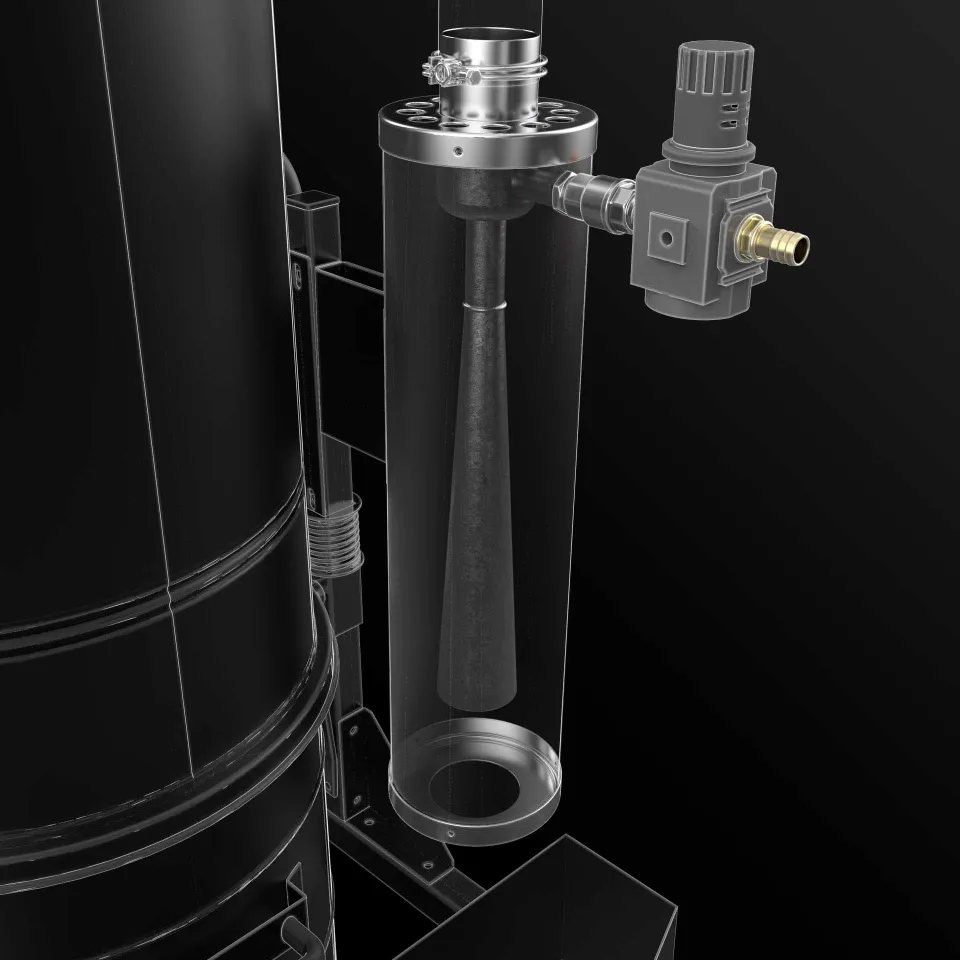

SUCTION UNIT

The vacuum cleaner is outfitted with a Venturi pipe, which efficiently generates a powerful vacuum without the need for mechanical or electrical components.

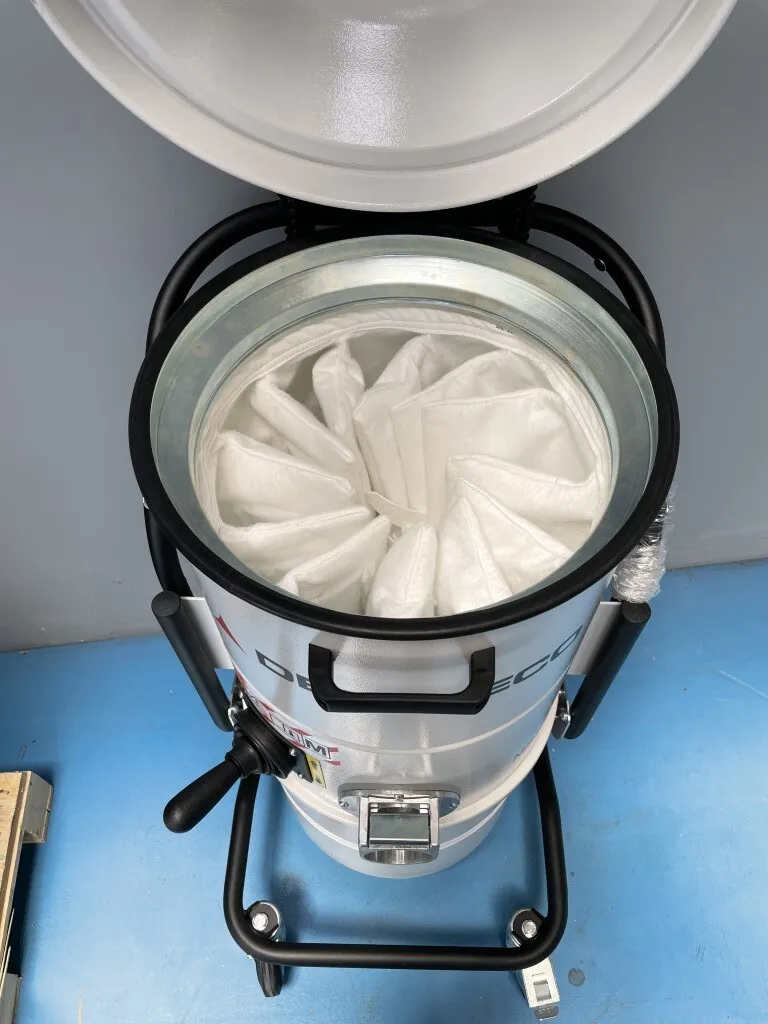

FILTERING ELEMENT

The primary filter is constructed from durable antistatic polyester material. Within the fabric, a conductive net is integrated to prevent any accumulation of electrostatic charge. The unique star shape design maximizes the filter's surface area while maintaining a compact size, allowing uninterrupted airflow even when the filter becomes dirty. This filter fabric has obtained M class certification (BIA | EN 60335-2-69), which ensures that particles as small as 1 micron are effectively captured, safeguarding both the suction unit and the operator in the vicinity of the vacuum cleaner.

MANUAL FILTER SHAKER

Located on the side of the filter chamber, there is an ergonomic manual shaker that allows the operator to effortlessly and rapidly clean the filter by removing dust and debris from its surface. This intelligent cleaning system enables the operator to continue working without the need to replace or wash the filter.

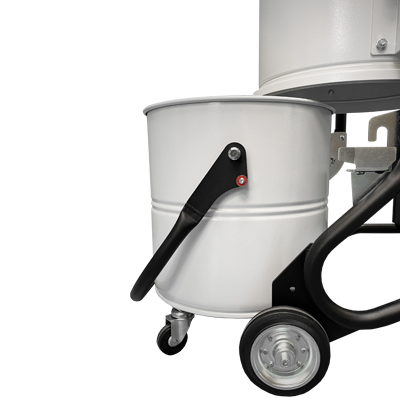

COLLECTION BIN

The collected material is stored in a painted container that features a metal handle, allowing the bin to be detached from the machine. With the convenience of four swiveling wheels, the bin can be effortlessly moved and emptied.

TECHNICAL DATA

Motor

Venturi Pipe
200
inH2O
147
CFM
73
dB(A)
660
gal/min
2500 - 3000
inH20
2.75
Ø in

Primary Filter

Star
M
Antistatic Polyester
Manual Shaker
2500
in²

Machine

21.65 x 24.41
in
45
in
88
lb
11
gal
OPTIONS

ANT PTFE

HEPA

H14 Absolute Filter (EN 1822) Glass fiber

GX

BX

AB

Accessories basket

ACCESSORY

Steel reductor

P13642 – Ex Anti-Static kit PRO Ø1.57in

P13641 – EX Anti-static Starter kit Ø1.57in
