SP – 3C – 14,000
Automatic reverse jet cleaning system. Antistatic M class filter (EN-60335-2-69), 3x Polyester filter cartridges, 14,000 in² filter surface.
From 8.5 to 9 HP
6,975 in²
25.9 to 39.7 inH2O

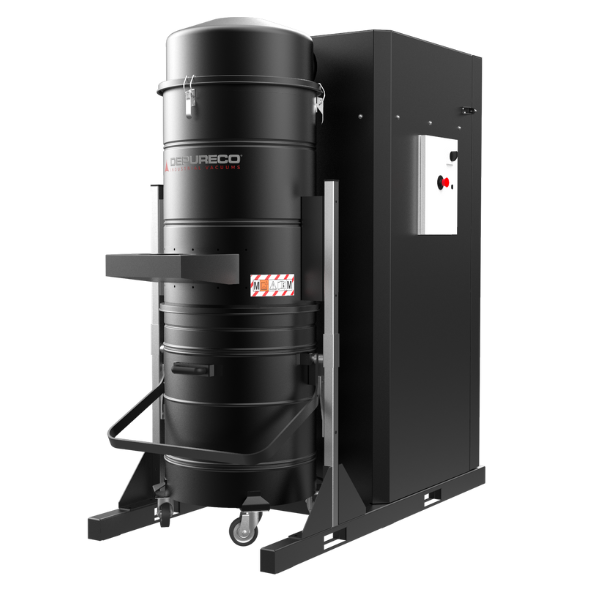

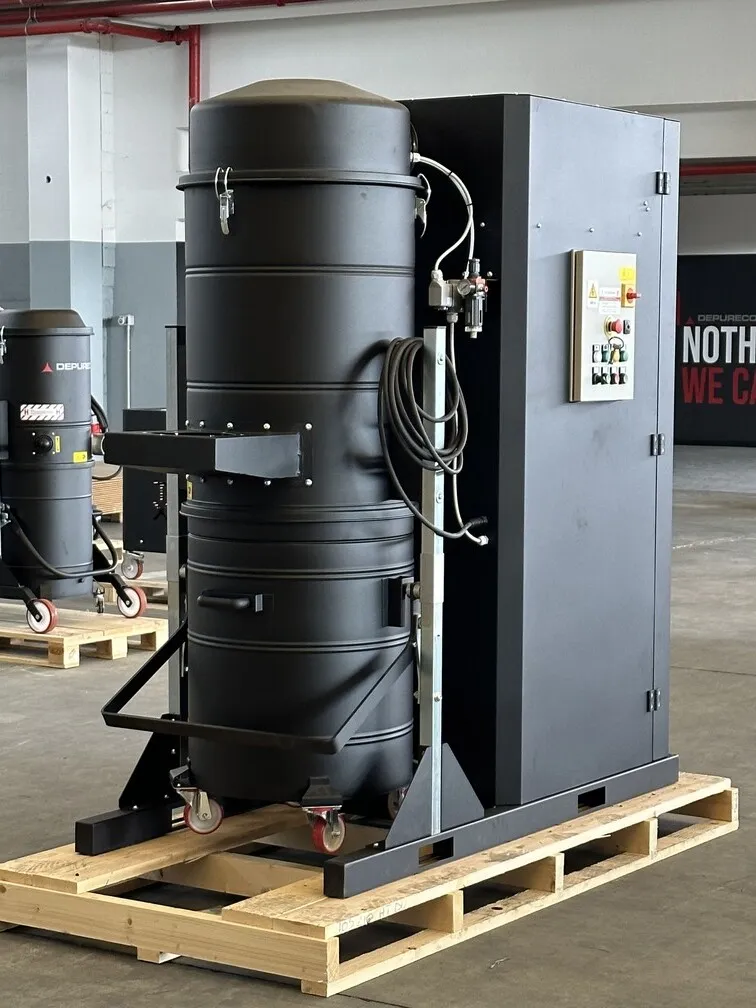

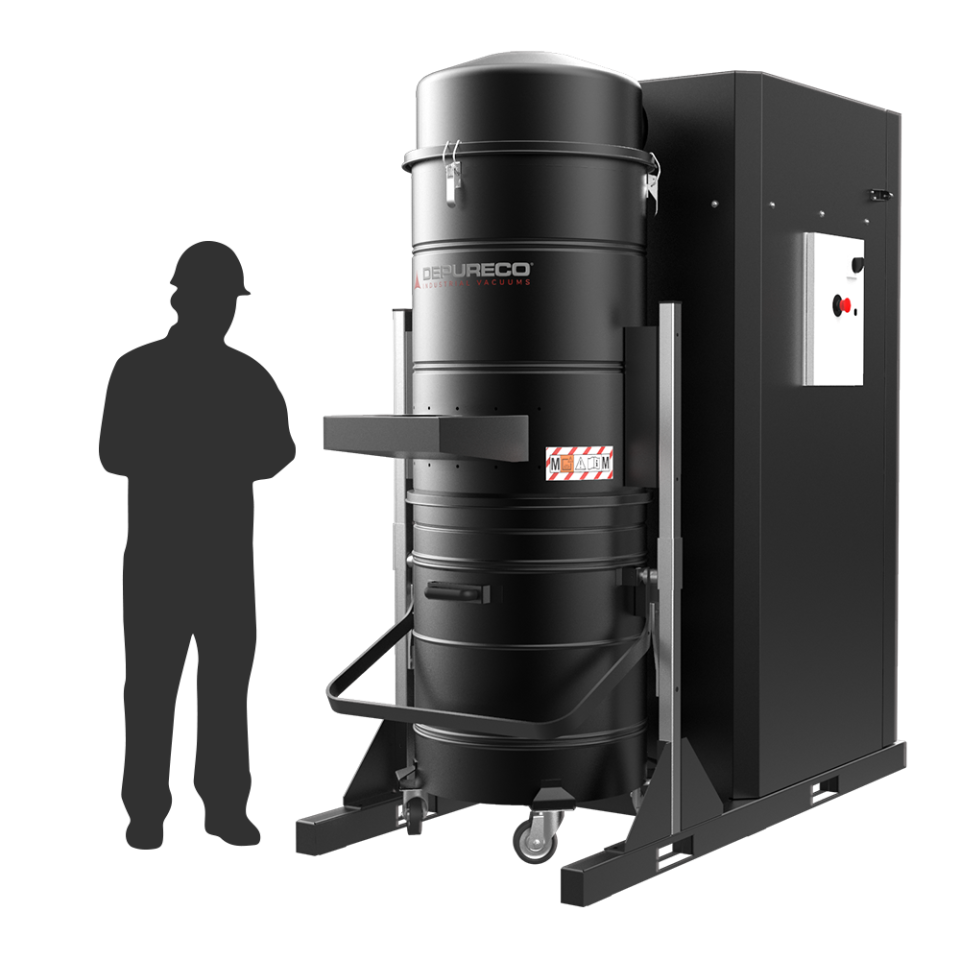

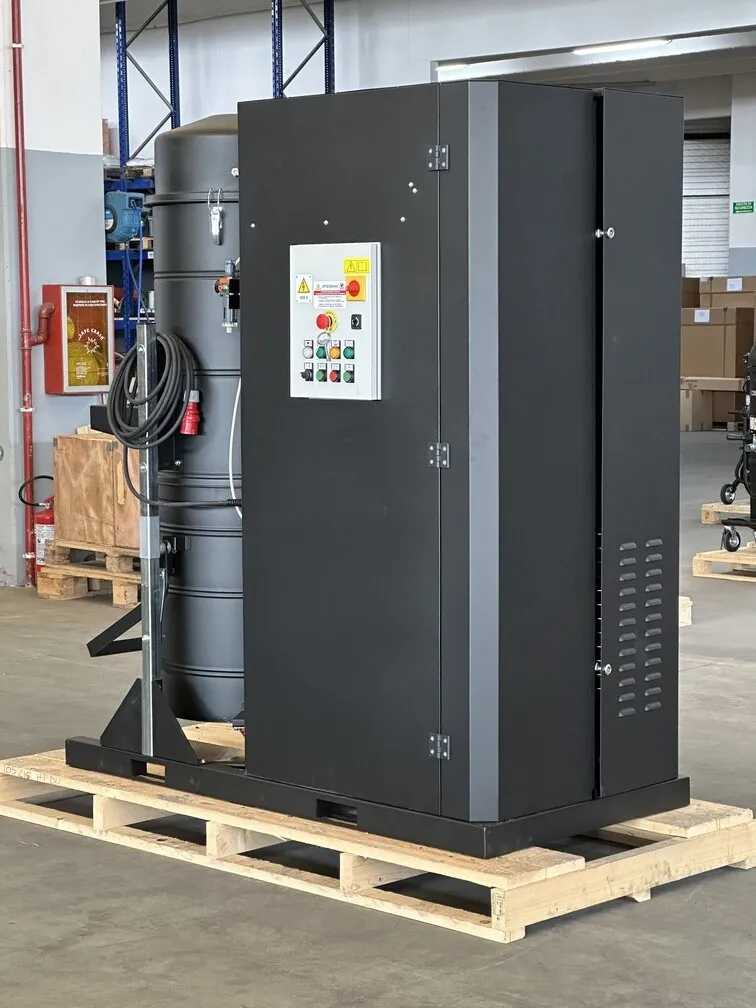

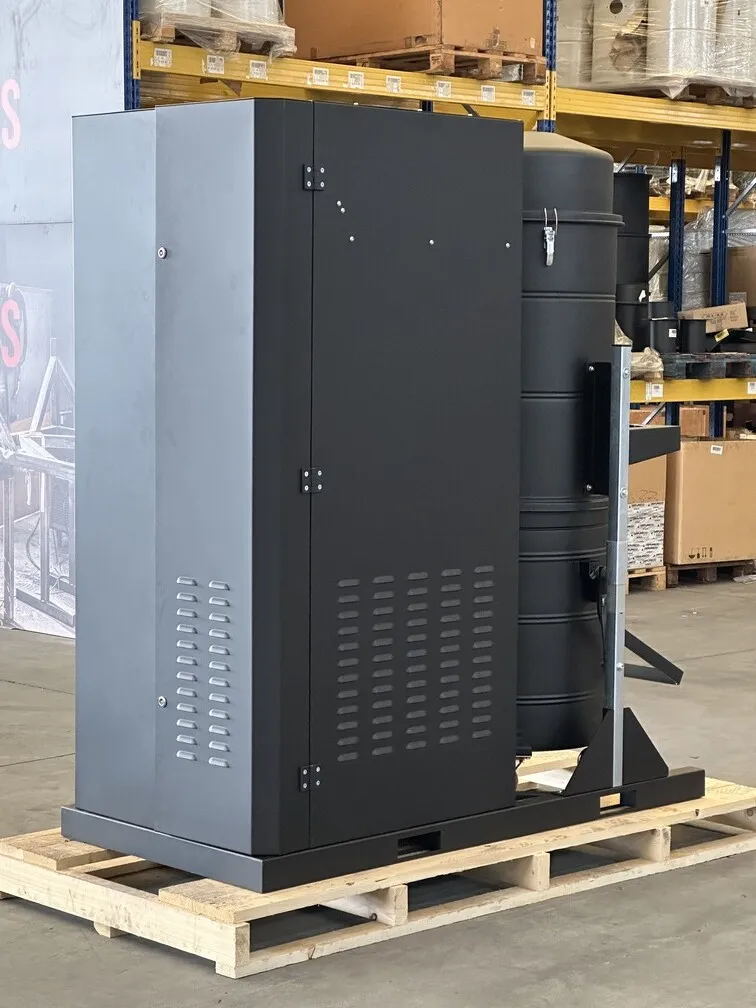

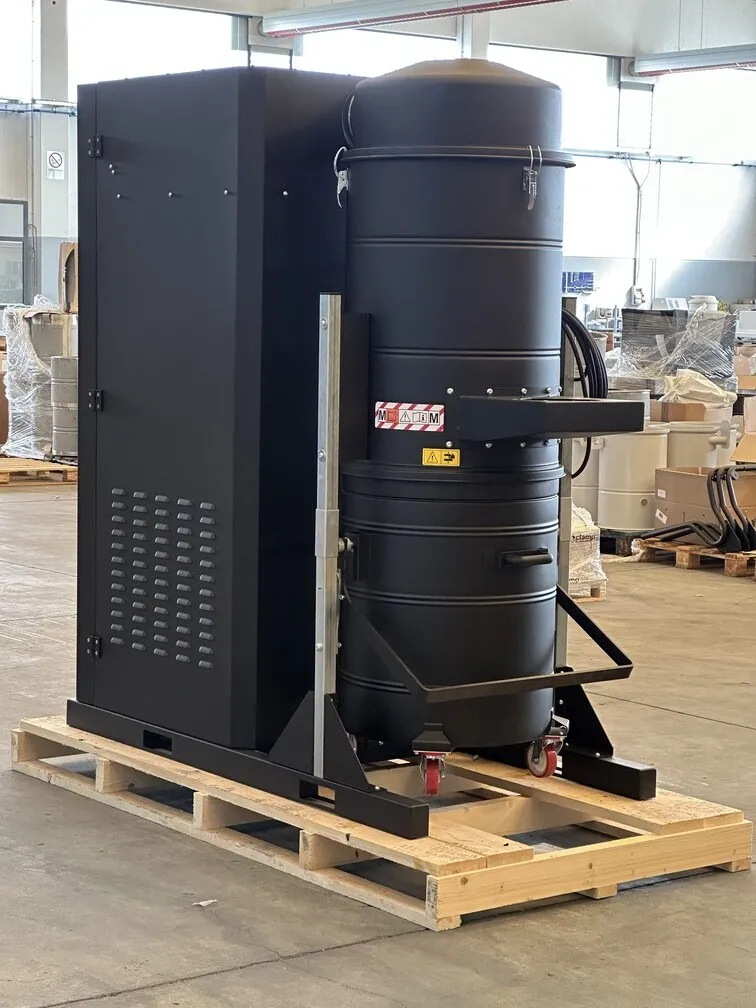

The DF FIX SP stationary dust collector is built for fixed source capture where airborne dust is generated repeatedly at machines, hoods, enclosures, cutting equipment and duct-connected process points. Unlike a mobile industrial vacuum used mainly for settled material cleanup, the DF FIX SP uses high airflow to capture dry process dust closer to where it is generated.
The range includes DF FIX 55 SP and DF FIX 75 SP configurations. Depending on model, fan performance reaches 1,589 to 2,472 CFM with 25.9 to 39.7 inH₂O maximum vacuum. Both configurations use 480 V / 60 Hz three-phase power, a 7.9-inch inlet and a 46-gal detachable collection bin.

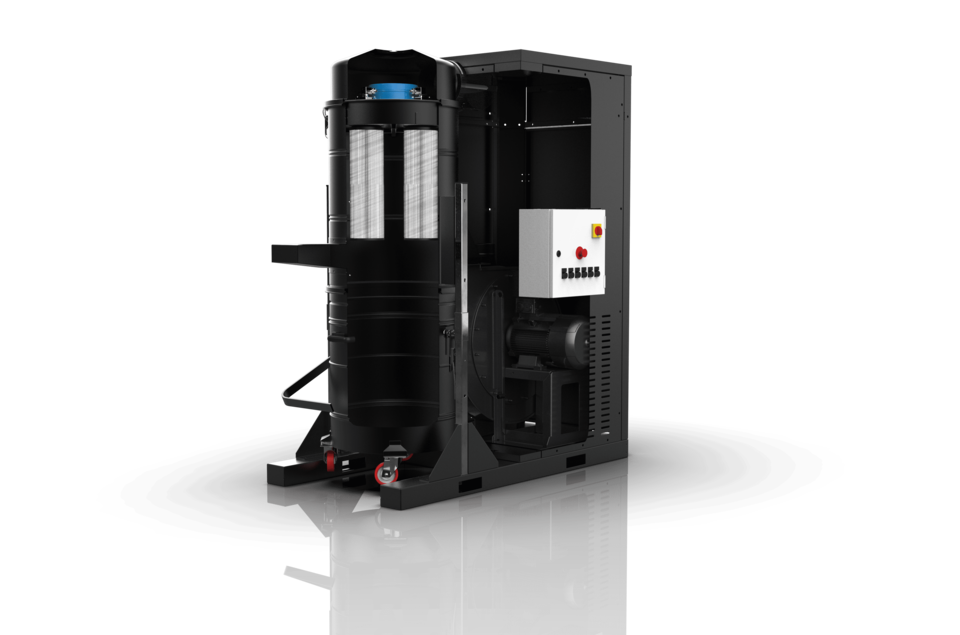

Primary filtration is provided by four polyester Class M cartridges with 18,600 in² of total filter surface. The adjustable, air-operated SP reverse pulse-jet system automatically cleans the cartridges, helping control filter loading during demanding dry-dust service.
DF FIX SP can support machine-connected dust extraction, localized source capture and selected central-system applications involving qualified dry process dust, fine particulate and powders. Available options include antistatic Class M filters, PTFE and antistatic PTFE media, grounding, remote-control predisposition, an AISI 304 stainless steel bin and an H14 fiberglass secondary filter.
The DF FIX 55 SP and 75 SP use 480 V / 60 Hz three-phase fan configurations delivering 1,589–2,472 CFM maximum airflow and 25.9–39.7 inH₂O maximum vacuum for fixed source-capture applications.
Four polyester Class M cartridges provide 18,600 in² of primary filter surface for dry process dust. Antistatic, PTFE and antistatic PTFE filter options are available where the application requires a different media configuration.
The specially designed inlet deflector directs the material towards the container with precision. Depending on specific needs, connection flanges or reduction flanges of various diameters can be easily attached to the deflector.

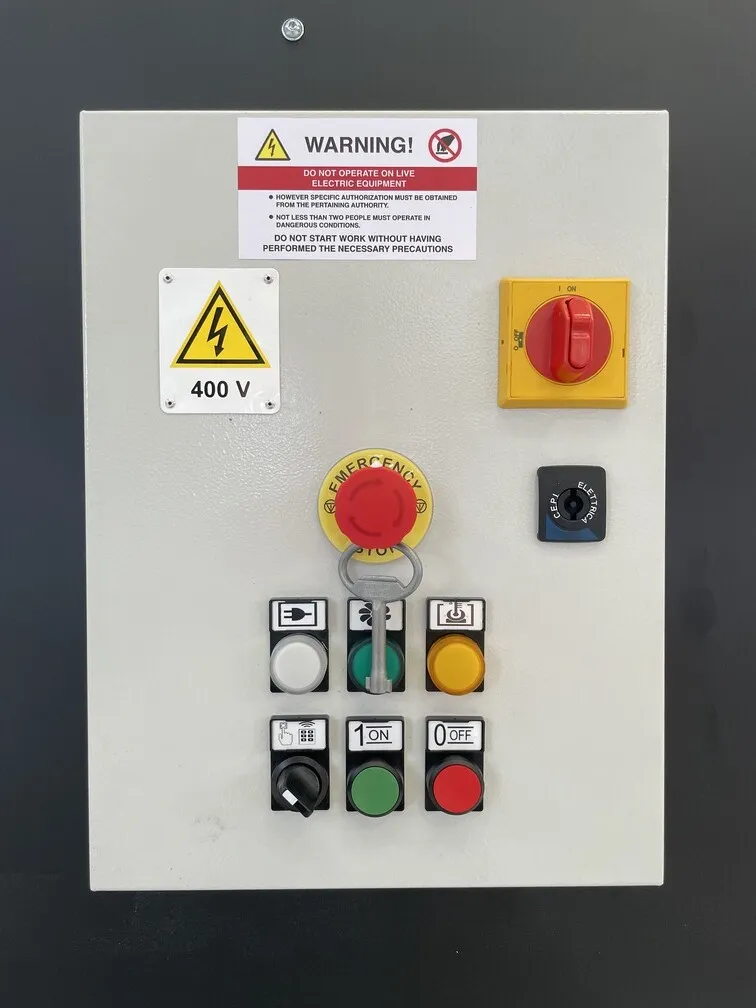

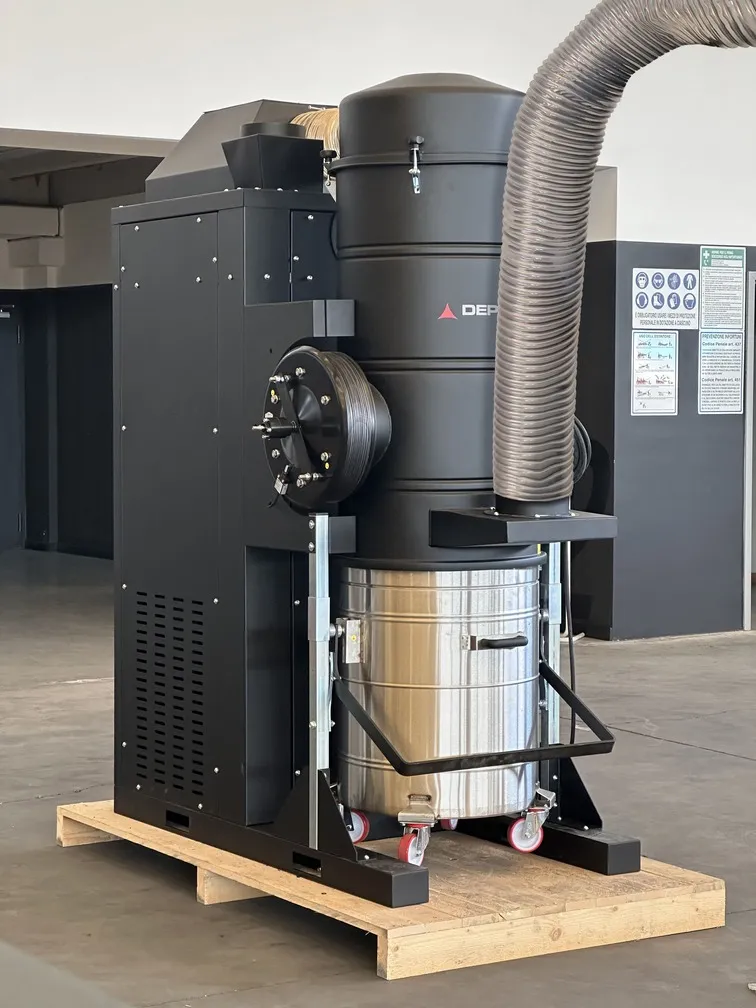

Collected material drops into a 46-gal detachable bin for removal and emptying. An AISI 304 stainless steel bin is available as an option, and remote-control predisposition can be specified for integrated installations.
Automatic reverse jet cleaning system. Antistatic M class filter (EN-60335-2-69), 3x Polyester filter cartridges, 14,000 in² filter surface.
H13 Absolute conical Filter (EN 1822)
H14 Absolute Filter (EN 1822) Glass fiber
