UPF C
Stationary Industrial Vacuum

Compact fixed vacuum for machine-side suction, OEM integration, and fine dust recovery with side-channel blower performance, M-Class filtration, and a 5-gal stainless collection bin.

POWER

Up to 3.42 HP | 480V 3∼

SURFACE

1,550 in2

CAPACITY

5 gal

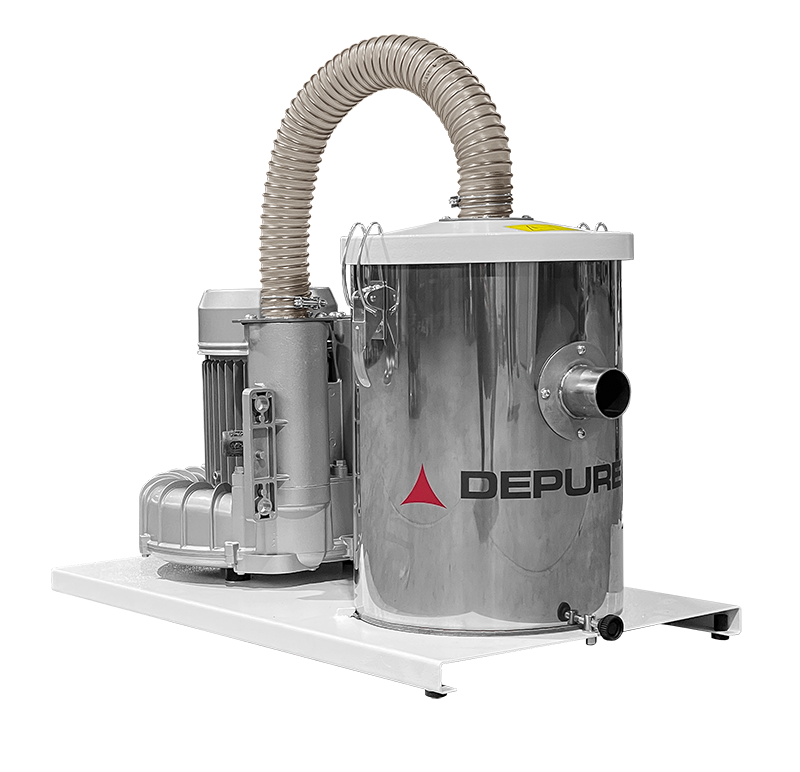

The UPF C is a compact stationary industrial vacuum designed for machine-side suction, OEM integration, pharma production areas, food processing, packaging lines, and localized fine dust or dry material recovery. Its fixed modular design makes it a strong fit for production equipment, automation cells, and process areas where a compact vacuum source needs to be installed near the dust or debris generation point.

The suction unit uses a side-channel blower for continuous vacuum performance with low maintenance requirements. A built-in safety valve helps protect the blower during operation, while the integrated metal silencer helps reduce operating noise in production environments.

For filtration, the UPF C uses an M-Class antistatic polyester star filter with 1,550 in² of filter surface area. A deflector inside the inlet slows incoming material before it reaches the filter, creating a cyclonic separation effect inside the bin and helping reduce premature filter loading.

Collected material drops into a 5-gallon stainless steel container for efficient removal and disposal. The UPF C is best suited for dry fine dust, powders, light production debris, and machine-side recovery in ordinary industrial environments. For combustible dust, explosive powders, classified locations, liquid recovery, or high-volume cleanup, confirm the correct Depureco vacuum configuration before quoting.

HIGHLIGHTS
SUCTION UNIT (BOXED)

SIDE-CHANNEL BLOWER

The UPF C uses a side-channel blower for continuous stationary suction in machine-side and OEM applications. The blower connects the motor and impeller directly, while a safety valve helps protect the suction unit during operation. A metal silencer is integrated into the blower assembly to help reduce operating noise in production environments.

cartuccia UPF ppt

M-CLASS ANTISTATIC FILTER

Filtration is handled by an M-Class antistatic polyester star filter with 1,550 in² of filter surface area. The star filter design provides compact filtration for fine dust and dry material recovery while helping maintain airflow in localized production cleanup applications.

ingresso_del_materiale_upf

DEFLECTOR INLET

The front inlet includes an internal deflector that slows incoming material before it reaches the filter. This creates a cyclonic separation effect inside the collection bin, helping reduce filter loading and lowering the chance of premature clogging during fine dust or dry debris pickup.

presa_upf

IP55 PLUG WITH PHASE INVERSION

The UPF C includes a sturdy IP55-rated electrical plug with an integrated phase inversion system. The phase can be changed with a screwdriver, making setup easier when connecting the vacuum to three-phase industrial power.

TECHNICAL DATA

UPF 150 C

Motor
Side Channel Blower
480 | 60
V|Hz
160
CFM
64
dB(A)
60
Hz
6.2
HP
60
inH2O
55 | F
2
Ø in
Single-Phase Electric
Primary Filter
Star
M
Antistatic Polyester
1,550
in²
h13
Machine
17 x 31
in
22
in
87
lb
5
gal

UPF 220 C


Side Channel Blower
480 | 60
V|Hz
190
CFM
64
dB(A)
60
Hz
6.2
HP
85
inH2O
55 | F
2
Ø in
Single-Phase Electric

Star
M
Antistatic Polyester
1,550
in²
h13

17 x 31
in
22
in
93
lb
5
gal
