POWER

up to 8.7 HP

SURFACE

5890.01 in2

CAPACITY

26 gal

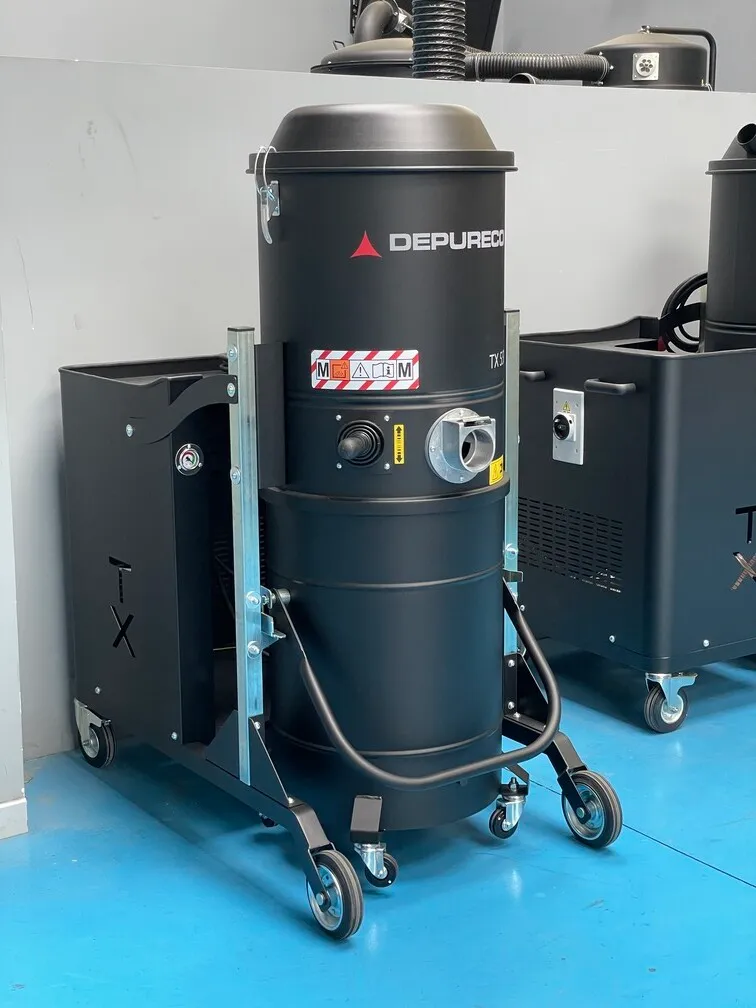

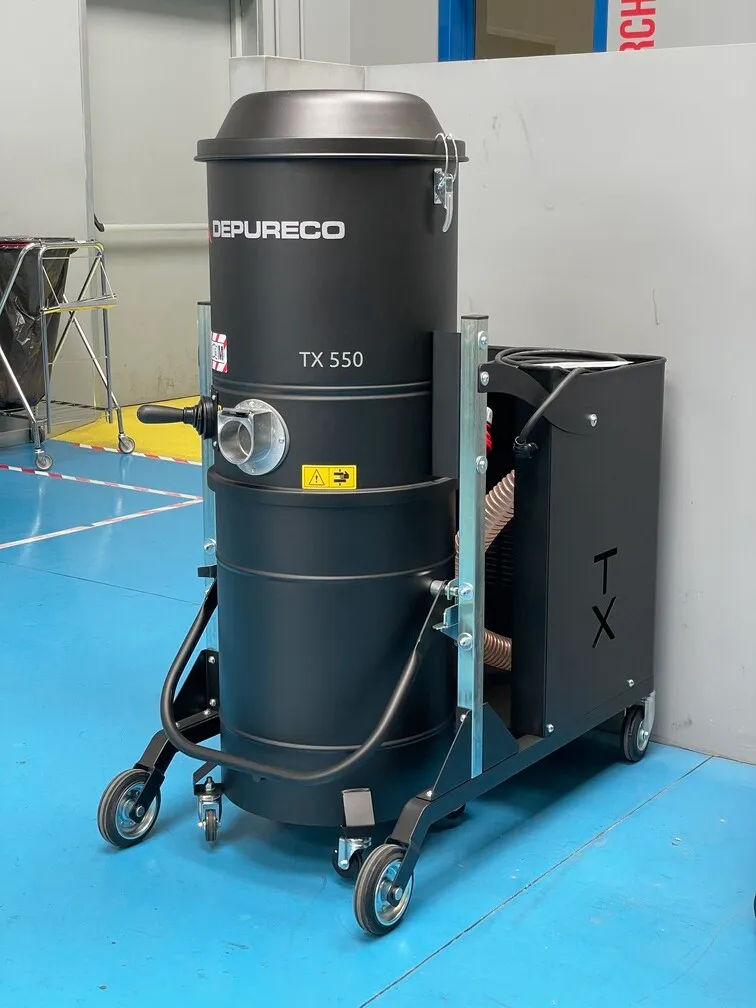

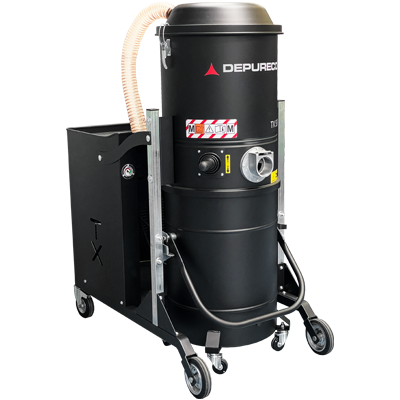

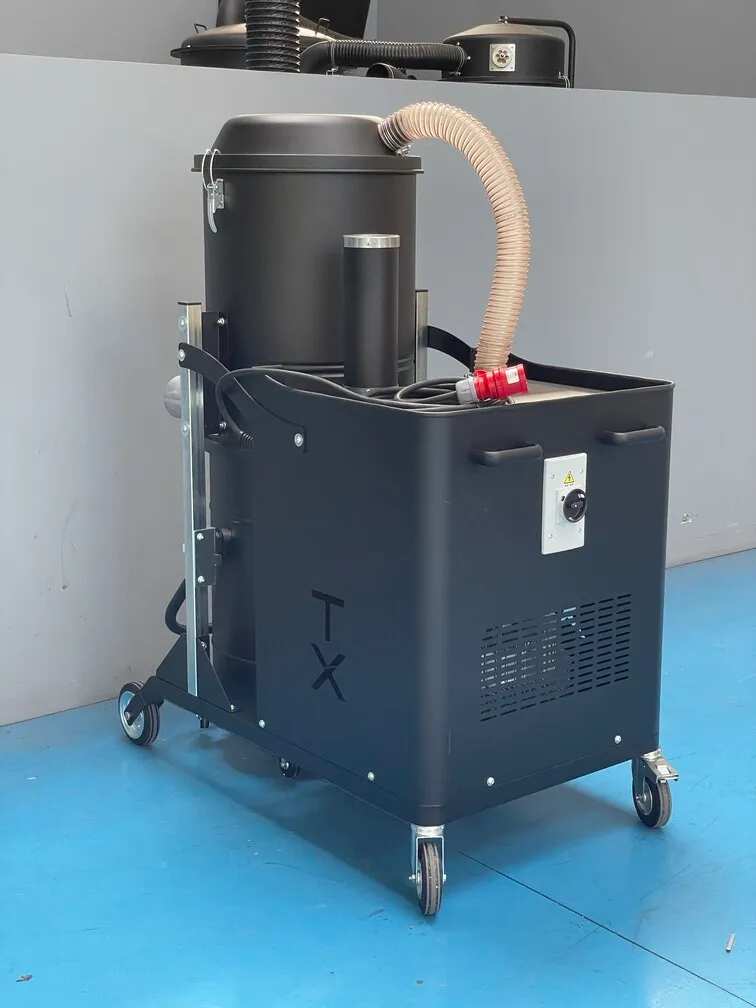

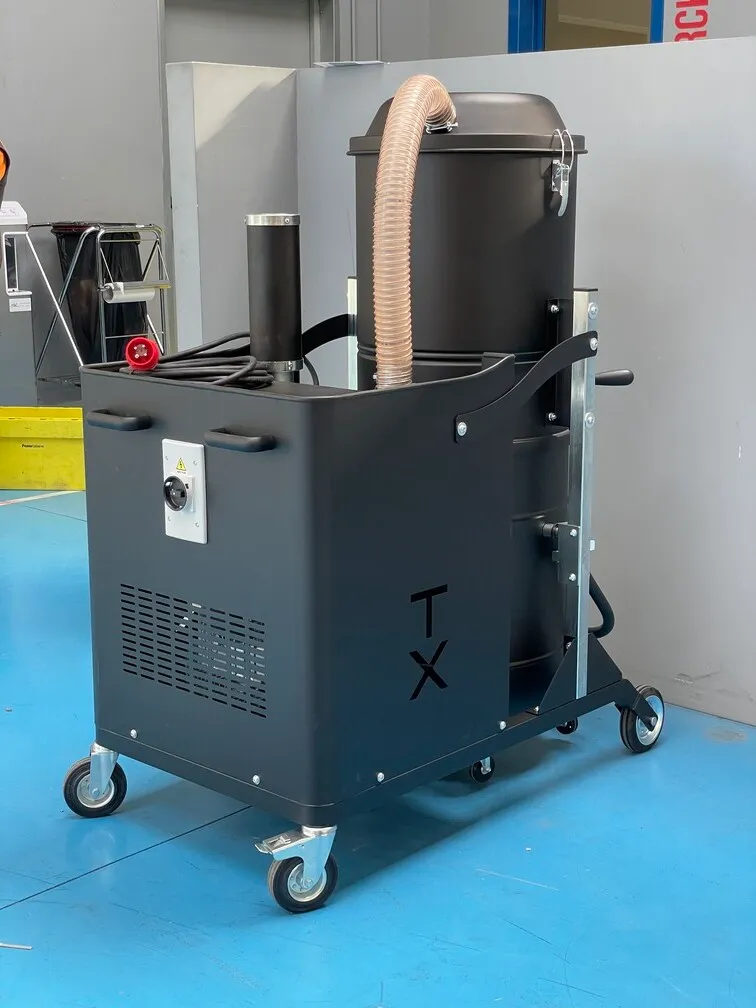

The TX industrial vacuum distinguishes itself with its impressive power, maneuverability, and compact design. It is equipped with a 4 kW side channel turbine, which ensures continuous operation without the need for frequent maintenance. The filter chamber houses a generously sized polyester filter with a large surface area of 5890.01 in2. This filter is certified as M Class, guaranteeing efficient filtration with a 1-micron filtration efficiency, even for the finest dust particles. Depending on the specific professional application, alternative filters can be installed in this industrial vacuum from the Depureco three-phase range. Options include Teflon water-repellent filters, Nomex filters that can withstand temperatures up to 482°F, and filters treated with PTFE for improved binding of challenging dust. On-demand, the unit can be fitted with an H14 absolute filter. The TX industrial vacuum is equipped with a sizable 26 gal detachable container, mounted on wheels for easy mobility and effortless emptying of the collected material. collection bags can also be used for added convenience. Additionally, a floating system can be incorporated into the container to enable safe vacuuming of liquids.



TX | HIGHLIGHTS

SUCTION UNIT

The suction unit of the system utilizes a side channel blower that features a direct coupling mechanism connecting the motor and impeller. To ensure ongoing safe operation without the need for maintenance, the side channel blower is equipped with a safety valve. Additionally, a metal silencer is incorporated into the blower to effectively reduce noise levels and maintain a low-noise working environment.

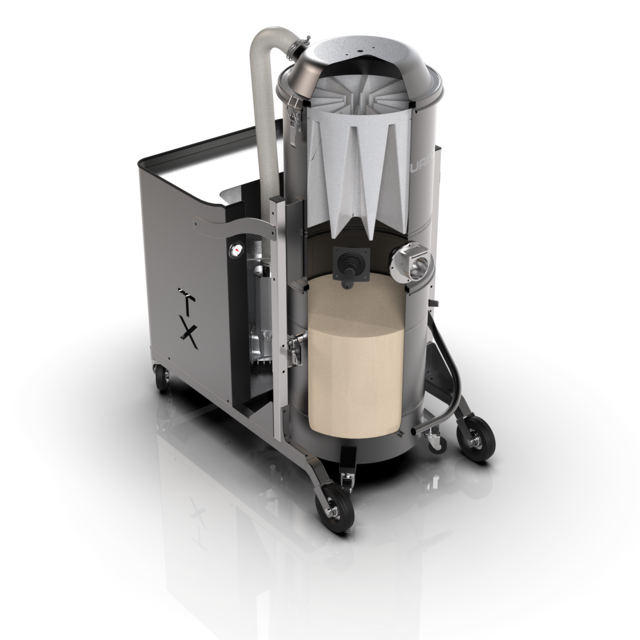

FILTERING UNIT

The filtration is guaranteed by an M class polyester filter. The star shape enables air to flow through the filter even when it is dirty. The fabric of the filter is classified as M Class (BIA | EN 60335-2-69). This means that all particles till 1 micron are stopped by the filter so as to protect the blower and the operator around the vacuum cleaner.

MANUAL FILTER SHAKER

Located on a side of the filter chamber, there is an ergonomically designed manual shaker that enables the operator to effortlessly and swiftly clean the filter, effectively eliminating dust and debris from its surface. With the help of this intelligent cleaning system, the operator can continue working without the necessity of replacing or washing the filter.

COLLECTION BIN

The collected material is stored within a painted container that is equipped with a metal handle, allowing for easy detachment from the machine. With the assistance of its four swiveling wheels, the container can be effortlessly moved and emptied. Each wheel is reinforced to ensure optimal stability during handling.

TX | TECHNICAL DATA

TX 300

Motor
Side channel blower
480 | 60
V|Hz
119
inH2O
247
CFM
74
dB(A)
4.8 | 3∼
HP
108
inH2O
55 | F
2.75
Ø in
Primary Filter
Star filter
M Class
Polyester
Manual shaker
5.900
in²
Machine
25.59 x 43.31
in
55.12
in
287
lb
26
gal
Optional

TX400P


Side channel blower
480 | 60
V|Hz
100
inH2O
300
CFM
76
dB(A)
6.5 | 3∼
HP
80
inH2O
55 | F
2.75
Ø in

Star filter
M Class
Polyester
Manual shaker
5.900
in²

25.59 x 43.31
in
55.12
in
309
lb
26
gal
Optional

TX400S


Side channel blower
480 | 60
V|Hz
125
inH2O
210
CFM
76
dB(A)
6.5 | 3∼
HP
114
inH2O
55 | F
2.75
Ø in

Star filter
M Class
Polyester
Manual shaker
5.900
in²

25.59 x 43.31
in
55.12
in
309
lb
26
gal
Included

TX550P


Side channel blower
480 | 60
V|Hz
100
inH2O
400
CFM
76
dB(A)
8.5 | 3∼
HP
80
inH2O
55 | F
2.75
Ø in

Star filter
M Class
Polyester
Manual shaker
5.900
in²

25.59 x 43.31
in
55.12
in
345
lb
26
gal
Optional

TX750


Side channel blower
480 | 60
V|Hz
145
inH2O
400
CFM
79
dB(A)
11.5 | 3∼
HP
130
inH2O
55 | F
2.75
Ø in

Star filter
M Class
Polyester
Manual shaker
5.900
in²

25.59 x 43.31
in
55.12
in
419
lb
26
gal
Optional
TX | OPTIONS

TEFLON

NOMEX

PTFE

ANT PTFE

ANT

HEPA

H14 Absolute Filter (EN 1822) Glass fiber

GFR

PRV

GX

BX

FORKLIFT BRACKET

FLOATING DEVICE

GRD

KDP

LONGOPAC

TAN + CYC

TX | ACCESSORY

Steel reductor

P11887 – Wet&Dry Kit Ø1.96in

P12350 – Starter kit Ø1.97in
