The RAM 280 MP CNC Sump Cleaning Kit combines Depureco’s high-capacity RAM OIL 280 MP sump vacuum with the 2-inch Oil & Swarf Pro Kit to create a complete machine-side solution for CNC tank cleaning, coolant recovery and metal chip removal.
Built for demanding machining environments, the RAM 280 MP recovers coolant, cutting oil, sludge, chips and swarf directly from CNC sumps and machine tanks. A removable sieve basket separates collected solids from liquid, while the external discharge pump allows recovered coolant or oil to be transferred out of the tank with less manual handling.
The 74-gallon liquid capacity and 11-gallon solids collection capacity make the system well suited for larger sump-cleaning jobs, while the included Oil & Swarf Pro Kit provides the 2-inch tools and accessories needed for practical machine-side cleanup.
This package is intended for CNC machining, metalworking, machine shops and manufacturing facilities looking to reduce manual sump cleaning, recover usable fluids and simplify the handling of wet metal chips and swarf.
Watch the system in operation, then review the industries, applications and materials this package is designed to support.
See how the package is configured and used from setup through the final step of the application.
Key features and package advantages that help make this configuration effective for its intended applications.
Recover coolant, cutting oil, chips, swarf and sludge while the external discharge pump moves separated liquid to a drum, holding tank or back to the CNC sump. Simultaneous suction and discharge keeps material moving and can dramatically shorten routine tank-cleaning workflows.
Three by-pass motors deliver up to 326 CFM and 98 inH₂O of vacuum, backed by a 74-gallon liquid tank and 11-gallon solids capacity for fast recovery of coolant, oil and heavy machining debris.

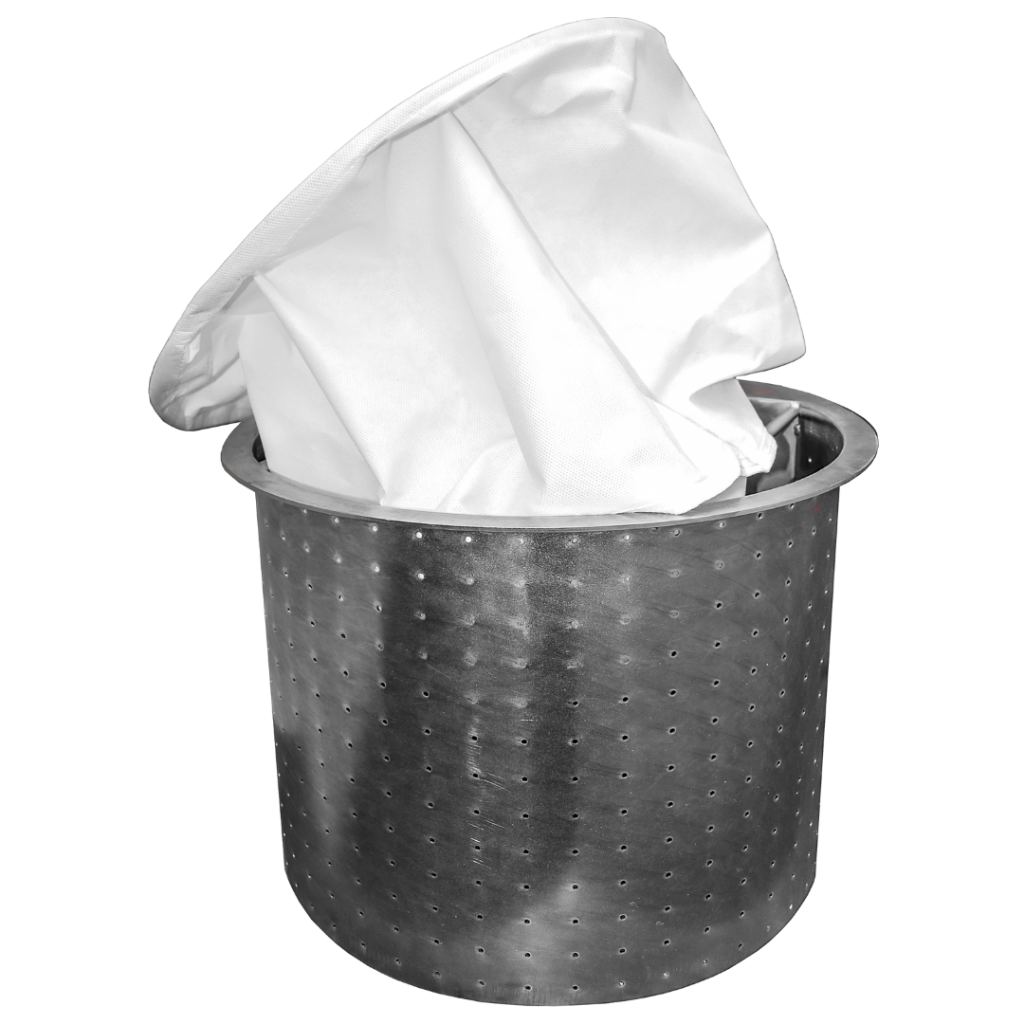

The removable metal sieve basket captures larger chips, swarf and shavings before liquid reaches the main tank. Add the reusable washable 150-micron liquid filter when finer particle capture is needed, or run the basket without it for faster coarse chip and swarf separation.

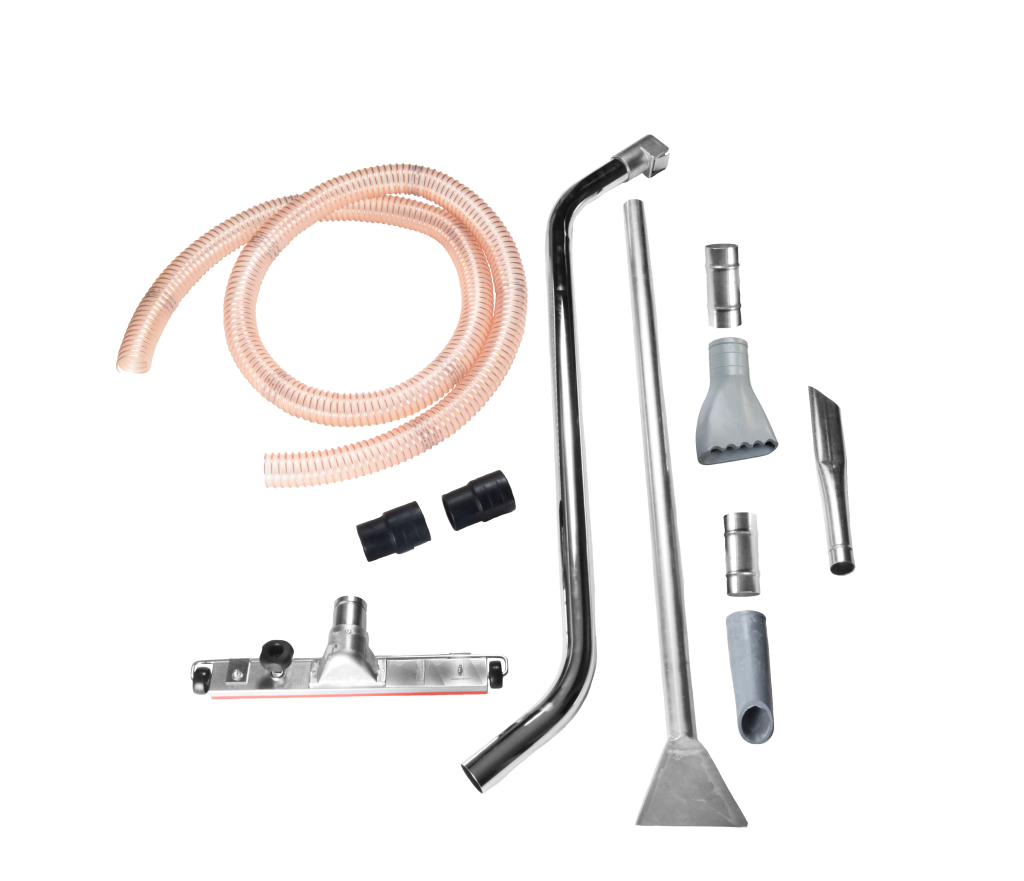

The included Oil & Swarf PRO Kit uses a reinforced PUR hose, antistatic cuffs, metal connections and specialized oil-resistant tools for sump access, scraping, targeted pickup and wet floor cleanup. It is a complete tool set for routine CNC coolant-tank maintenance.
Review the machine features that drive performance, capacity, filtration, recovery and day-to-day operation.
The suction power is generated from three by-pass motors within the vacuum system. Each motor is individually controlled by its own switch, granting the operator precise control over the intake performance. Housed within a robust casing, the motors are accompanied by an insulating sponge to effectively reduce noise levels, creating a quieter working environment.
The gathered liquid passes through a PPL filter with a 150µ efficiency, which enables the separation of even the tiniest solid particles. This process ensures that the filtered liquid becomes suitable for reuse. The filter is designed to be easily washed and reused. Additionally, there is an alternative disposable TNT filter with a 100µ efficiency that is also available.
Enhanced for effortless maneuverabilit. Move around freely without twisting th sump vacuum.
To discharge the tank, the vacuum features an externally mounted pump, maximizing the container's full capacity and guaranteeing thorough emptying without any residue.
Take a closer look at the industrial vacuum included with this package. Browse the machine, components, controls and key construction details.
Everything included with this package, including the base machine, tools, accessories and application-specific configuration.

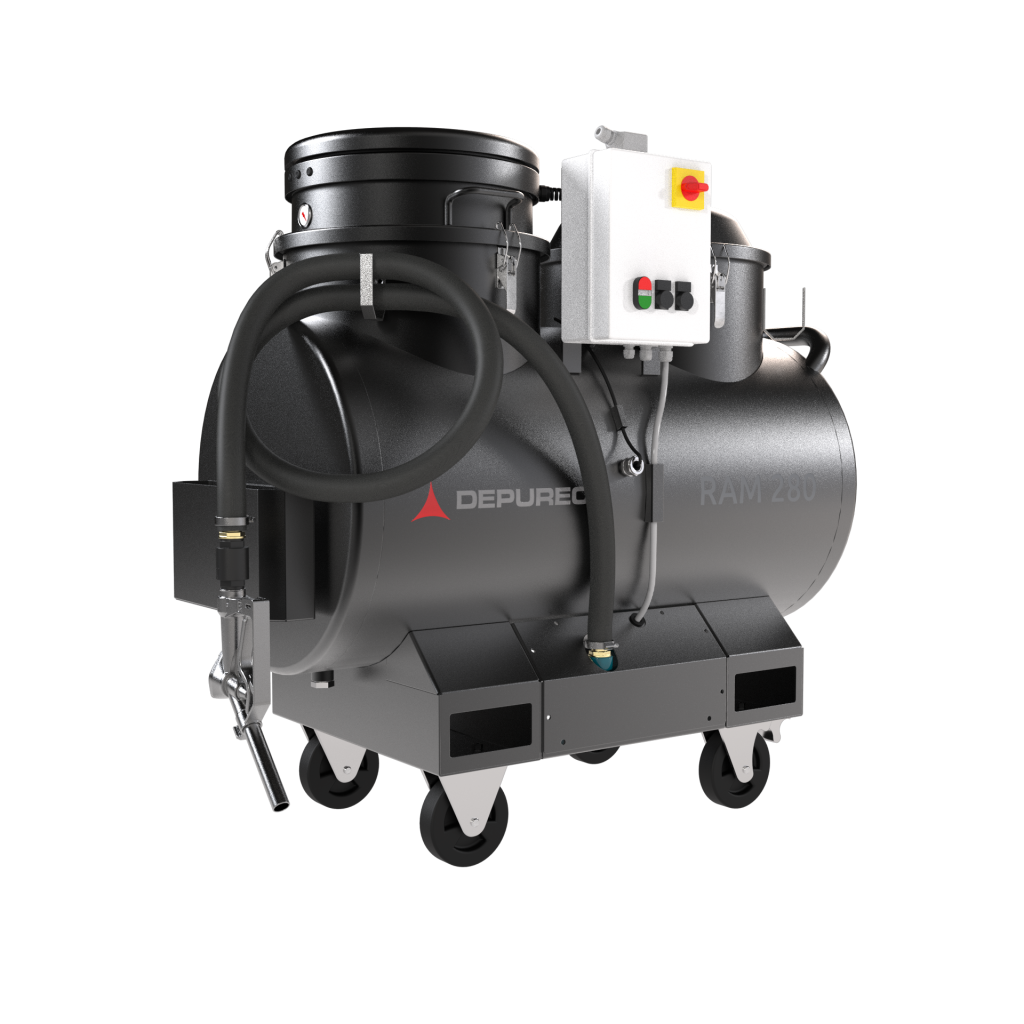

74-gal CNC sump vacuum with 326 CFM airflow, 98 inH₂O vacuum, an internal sieve grid basket and external liquid-discharge pump. Built to recover coolant or cutting oil together with chips, swarf and machining debris during sump cleaning.
View details
Rigid scraping pickup nozzle helps loosen and vacuum settled chips, swarf, metal fines and machining sludge from the bottom and sides of CNC coolant tanks.
View details
Double-bend cleaning tube positions the pickup tool for floor-level recovery around CNC machines, sumps and coolant-maintenance areas without using the hose alone.
View details
Wide oil-resistant pickup nozzle helps recover coolant, chips, swarf and wet machining debris across broader surfaces during sump and machine cleanup.
Tapered oil-resistant pickup nozzle concentrates suction for recovering coolant, oil, chips and debris from corners, low points and tighter areas inside CNC sumps and machine enclosures.
View details
Rigid flat pickup pipe extends the suction point into narrow sump areas, machine interiors and other spaces where a larger floor-cleaning tool is not practical.
View details
Complete 2-in CNC cleanup package with reinforced PUR hose, antistatic cuffs, oil-proof pickup tools, scraping nozzle and floor squeegee.
Flexible antistatic rubber cuffs connect the suction hose to the vacuum and cleanup tools while providing durable, removable connections for repeated machine-side maintenance.
Review the key performance, filtration, capacity and machine specifications for this package.
| Motors | Type | 3x Bypass |
|---|---|
| Voltage | Frequency | 110 V | 60 Hz |
| Maximum Vacuum | 98 |
| Maximum Air Flow | 326 CFM |
| Noise Level (EN ISO 3744) | 72 dB(A) |
| Frequency | 60 Hz |
| Power | 2.4 kW | 3.3 HP |
| Vacuum continuous use | 98 inH2O |
| Inlet | 2 Ø in |
| Ampere | 20 A |
| Power Supply Type | Single-Phase Electric |
| Filter Type | Liquid Bag Filter |
|---|---|
| Media | PPL Nylon Polypropylene |
| Filtering Efficiency | 150 µm |
| HEPA Option | N/A |
| Dimensions | 28 x 57 in |
|---|---|
| Height | 56 in |
| Weight | 333 lb |
| Liquids Capacity | 74 gal |
| Solids Capacity | 11 gal |
Explore compatible options, upgrades and accessories that can be added based on your application and operating requirements.
Review pricing, availability and shipping information before starting your purchase request.
